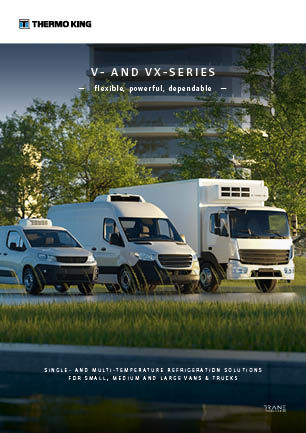

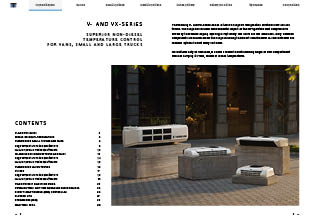

V- AND VX-SERIES

Superior non-diesel temperature control for vans, small and large trucks

Thermo King V- and VX-Series are an extensive range of refrigeration solutions for vans and trucks. The range has minimal environmental impact as the refrigeration unit compressor is driven by the vehicle engine, offering exceptionally low noise and low emissions. Many common components are shared across the range including the Direct Smart Reefer in-cab controller and modular options to suit every customer.

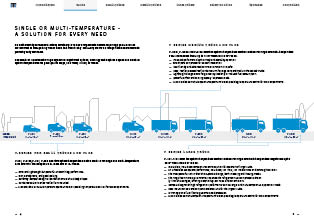

SINGLE OR MULTI-TEMPERATURE - A SOLUTION FOR EVERY NEED

No matter what your business entails, whether you're delivering delicate flowers requiring a precise chilled environment or transporting frozen meals that need to stay rock-solid, we have a refrigerated vehicle model to perfectly suit your needs.

Our selection includes both single and dual compartment options, allowing you to optimize space and maintain optimal temperatures for your specific cargo, be it fresh, chilled, or frozen.

V-Series for small trucks and vans

V-100, V-200s, V-200, V-300 offer the optimal temperature control solution for single and multi-temperature vans and small trucks up to 28 m³ fresh and 21 m³ frozen.

• — Small and lightweight but powerful units with big performance.

• — Slim, aerodynamic, and good looking.

• — Extremely compact design to blend with small vehicle body shapes.

• — Condenser section can be roof or front mounted.

• — Also available as multi-temperature Spectrum version providing temperature control for two compartments.


V Series medium truck and vans

V-400X, V-500X and V-600X offer the optimal temperature control solution for single and multi-temperature vans and medium trucks up to 10 m³ fresh and 50 m³ frozen.

• — Increased performance both on road and stand-by operation.

• — Swash plate compressor for ease of installation.

• — User friendly and advanced controller Direct Smart Reefer.

• — Nose, roof or recessed roof condenser unit for large vans and medium chassis cab trucks.

• — Lightweight design allows for greater payload and/or reduced fuel consumption.

• — Powerful airflow and cooling capacity to protect loads.

• — Also available as multi-temperature Spectrum version providing temperature control for two compartments.


V Series large truck

V-800-1000 offer the optimal temperature control solution for single and multi-temperature large trucks up to 30 m³ fresh and 60 m³ frozen.

• — Direct drive, non-diesel temperature control solution for operators of large trucks.

• — An unbeatable exceptional performance, non-diesel, low noise, low maintenance and low weight solution.

• — The most powerful unit in the vehicle-powered range, both in cooling and heating modes.

• — The range has minimal environmental impact as the refrigeration unit compressor is driven by the vehicle engine, offering exceptionally low noise and low emissions.

• — Compact design with high refrigeration performance to meet single and multi-temperature application needs.

• — Nose mount low size and compact condenser unit for the largest trucks.

• — Extremely powerful airflow to guarantee load protection.

• — Also available as multi-temperature Spectrum version providing temperature control for two compartments.

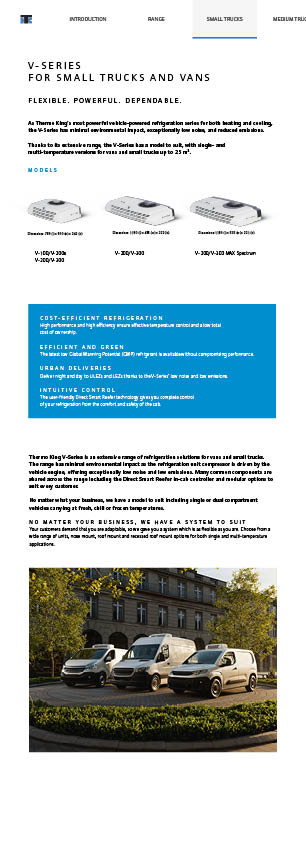

V-SERIES FOR SMALL TRUCKS AND VANS

Flexible. Powerful. Dependable.

As Thermo King’s most powerful vehicle-powered refrigeration series for both heating and cooling, the V-Series has minimal environmental impact, exceptionally low noise, and reduced emissions.

Thanks to its extensive range, the V-Series has a model to suit, with single- and multi-temperature versions for vans and small trucks up to 25 m³.

Cost-efficient refrigeration

High performance and high efficiency ensure effective temperature control and a low total
cost of ownership.

Efficient and green

The latest low Global Warming Potential (GWP) refrigerant is available without compromising performance.

Urban deliveries

Deliver night and day to ULEZs and LEZs thanks to the V-Series’ low noise and low emissions.

Intuitive control

The user-friendly Direct Smart Reefer technology gives you complete control of your refrigeration from the comfort and safety of the cab.

hermo King V-Series is an extensive range of refrigeration solutions for vans and small trucks. The range has minimal environmental impact as the refrigeration unit compressor is driven by the vehicle engine, offering exceptionally low noise and low emissions. Many common components are shared across the range including the Direct Smart Reefer in-cab controller and modular options to suit every customer.

No matter what your business, we have a model to suit including single or dual compartment vehicles carrying at fresh, chill or frozen temperatures.

No matter your business, we have a system to suit

Your customers demand that you are adaptable, so we gave you a system which is as flexible as you are. Choose from a wide range of units, nose mount, roof mount and recessed roof mount options for both single and multi-temperature applications.

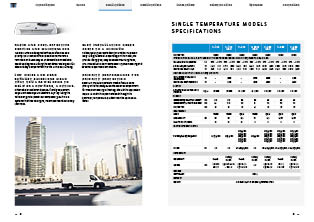

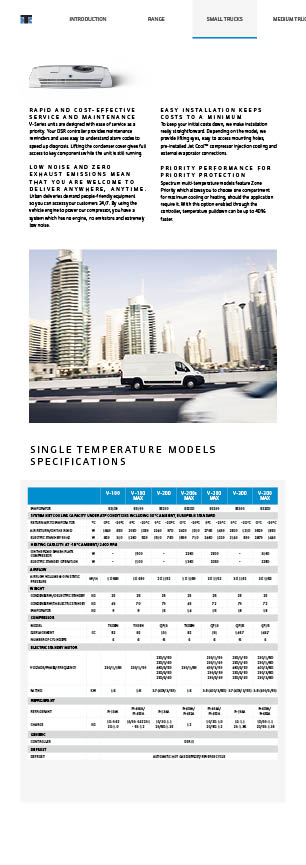

Rapid and cost-effective service and maintenance

V-Series units are designed with ease of service as a priority. Your DSR controller provides maintenance reminders and uses easy to understand alarm codes to speed up diagnosis. Lifting the condenser cover gives full access to key components while the unit is still running.

Low noise and zero exhaust emissions mean that you are welcome to deliver anywhere, anytime.

Urban deliveries demand people-friendly equipment so you can access your customers 24/7. By using the vehicle engine to power our compressor, you have a system which has no engine, no emissions and extremely low noise.

Easy installation keeps costs to a minimum

To keep your initial costs down, we make installation really straightforward. Depending on the model, we provide lifting eyes, easy to access mounting holes, pre-installed Jet Cool™ compressor injection cooling and external evaporator connections.

Priority performance for priority protection

Spectrum multi-temperature models feature Zone Priority which allows you to choose one compartment for maximum cooling or heating, should the application require it. With this option enabled through the controller, temperature pulldown can be up to 40% faster.

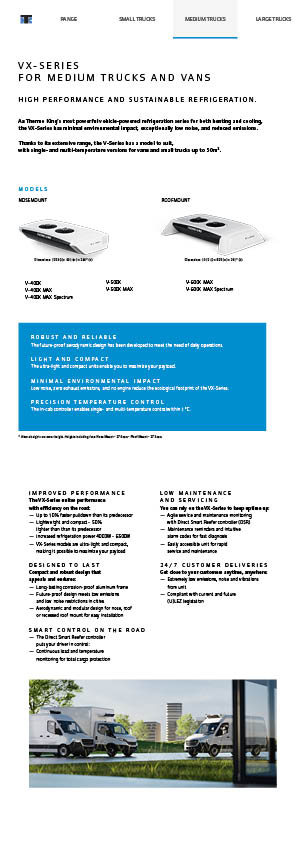

VX-SERIES FOR MEDIUM TRUCKS AND VANS

High performance and sustainable refrigeration.

As Thermo King’s most powerful vehicle-powered refrigeration series for both heating and cooling, the VX-Series has minimal environmental impact, exceptionally low noise, and reduced emissions.

Thanks to its extensive range, the V-Series has a model to suit, with single- and multi-temperature versions for vans and small trucks up to 50m³.

Robust and reliable

The future-proof aerodynamic design has been developed to meet the need of daily operations.

Light and compact

The ultra-light and compact units enable you to maximize your payload.

Minimal environmental impact

Low noise, zero exhaust emissions, and no engine reduce the ecological footprint of the VX-Series.

Precision temperature control

The in-cab controller enables single- and multi-temperature control within 1°C.

Improved performance

The VX-Series unites performance with efficiency on the road:

• — Up to 10% faster pulldown than its predecessor

• — Lightweight and compact - 50% lighter than than its predecessor

• — Increased refrigeration power 4000W - 6500W

• — VX-Series models are ultra-light and compact, making it possible to maximize your payload


Designed to last

Compact and robust design that appeals and endures:

• — Long-lasting corrosion-proof aluminum frame

• — Future-proof design meets low emissions and low noise restrictions in cities

• — Aerodynamic and modular design for nose, roof or recessed roof mount for easy installation


Smart control on the road

• — The Direct Smart Reefer controller puts your driver in control:

• — Continuous load and temperature monitoring for total cargo protection



  Low maintenance and servicing


  You can rely on the VX-Series to keep uptime up:


  • — Agile service and maintenance monitoring with Direct Smart Reefer controller (DSR)

  • — Maintenance reminders and intuitive alarm codes for fast diagnosis

  • — Easily accessible unit for rapid service and maintenance




  24/7 Customer deliveries


  Get close to your customers anytime, anywhere:


  • — Extremely low emissions, noise and vibrations from unit

  • — Compliant with current and future (U)LEZ legislation

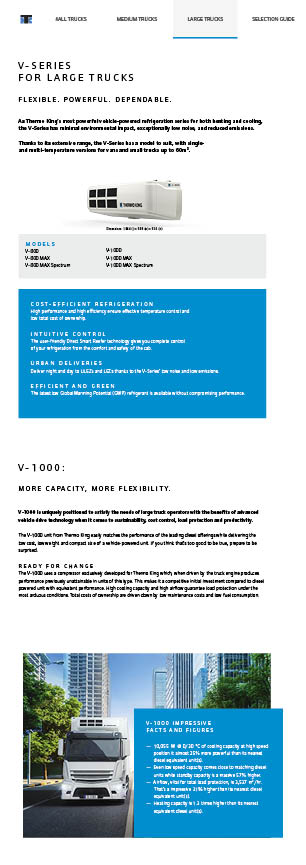

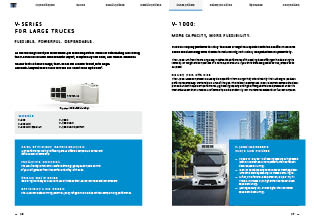

V-SERIES FOR LARGE TRUCKS

Flexible. Powerful. Dependable.

As Thermo King’s most powerful vehicle-powered refrigeration series for both heating and cooling, the V-Series has minimal environmental impact, exceptionally low noise, and reduced emissions.

Thanks to its extensive range, the V-Series has a model to suit, with single- and multi-temperature versions for vans and small trucks up to 60m³.

Cost-efficient refrigeration

High performance and high efficiency ensure effective temperature control and low total cost of ownership.

Intuitive control

The user-friendly Direct Smart Reefer technology gives you complete control of your refrigeration from the comfort and safety of the cab.

Urban deliveries

Deliver night and day to ULEZs and LEZs thanks to the V-Series’ low noise and low emissions.

Efficient and green

The latest low Global Warming Potential (GWP) refrigerant is available without compromising performance.

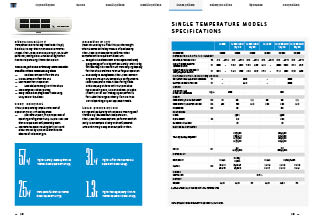

V-1000: MORE CAPACITY, MORE FLEXIBILITY.

V-1000 is uniquely positioned to satisfy the needs of large truck operators with the benefits of advanced vehicle drive technology when it comes to sustainability, cost control, load protection and productivity.

The V-1000 unit from Thermo King easily matches the performance of the leading diesel offerings while delivering the low cost, low weight and compact size of a vehicle-powered unit. If you think that’s too good to be true, prepare to be surprised.

ready for change
The V-1000 uses a compressor exclusively developed for Thermo King which, when driven by the truck engine produces performance previously unattainable in units of this type. This makes it a competitive initial investment compared to diesel powered unit with equivalent performance. High cooling capacity and high airflow guarantee load protection under the most arduous conditions. Total costs of ownership are driven down by low maintenance costs and low fuel consumption.

V-1000 impressive facts and figures
— 10,055 W @ 0/30 °C of cooling capacity at high speed position it almost 25% more powerful than its nearest diesel equivalent unit(s).
— Even low speed capacity comes close to matching diesel units while standby capacity is a massive 57% higher.
— Airflow, vital for total load protection, is 3,537 m³/hr. That’s a impressive 31% higher than its nearest diesel equivalent unit(s).
— Heating capacity is 1.3 times higher than its nearest equivalent diesel unit(s).

Sustainability
Transport solutions not only need to do the job, but do it in a way that minimises environmental impact. The V-1000 is an exceptionally “low-touch” performer, leaving diesel units out of sight when it comes to protecting the world we live in.

These are just some of the key environmental benefits of this remarkable system:
— No diesel emissions from the unit
— No CO₂ emissions from the unit
— Low noise when in operation
— Less additional weight on the vehicle
— More cargo carried per journey
— Easily installed on progressive fleets using LNG/CNG or bio-diesel.

Cost control
The V-1000 positively impacts Total Cost of Operation (TCO) in these key areas:
— Fuel consumption, the principal cost of operating a refrigeration unit, is up to 54% less than an equivalent self-powered system.
— Maintenance costs including both parts and labour are cut by up to 33% thanks to the absence of a diesel engine.

Productivity
You want units in your fleet that pull their weight when it comes to the key measure of productivity. The V-1000 is an exceptional performer when compared with an equivalent diesel unit:

— Weight is less than half of an equivalent unit, giving savings of 250 kg without standby and 150 kg with standby. This means much more carrying capacity for the vehicle and more revenue for your operation.
— Flexibility is exceptional. The V-1000 comes in single or various multi-temperature configurations. Its compact profile make it ideal for high cabs and it’s equally at home with multiple vehicle types including CNG, LNG or Biodiesel. Available in both 12 V or 24 V making it your perfect fit for trucks that range all the way from 3.5 tn to 25 tn depending on your application needs.

Load protection
Savings and productivity while vital are meaningless if there are any doubts about load protection. The V-1000 features exceptional performance which is why it can compete directly with self-powered units and in many cases, even outperform them.

57% higher standby capacity than its nearest diesel equivalent unit(s).
25% more powerful than its nearest diesel equivalent unit(s).
31% higher airflow than its nearest equivalent diesel unit(s).
1.3x higher heating capacity than its nearest equivalent diesel unit(s)

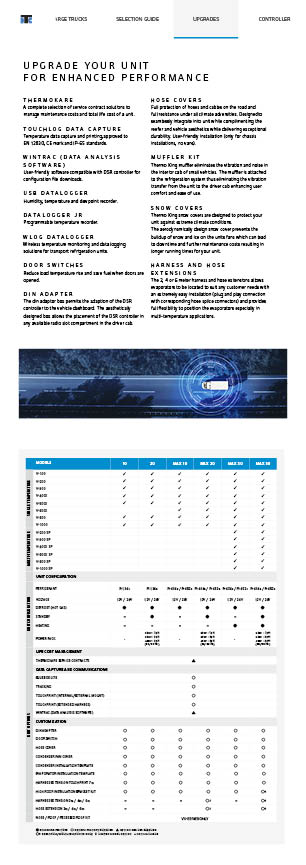

UPGRADE YOUR UNIT FOR ENHANCED PERFORMANCE

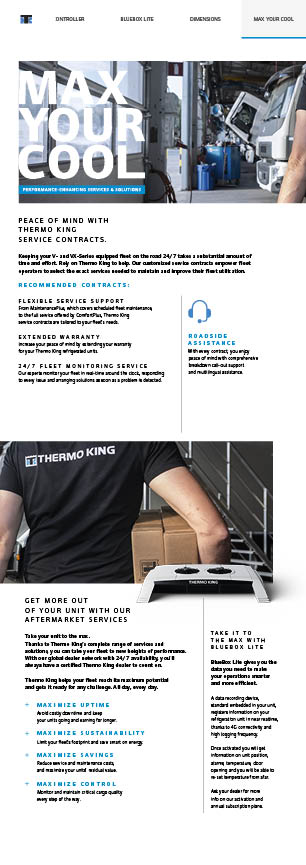

ThermoKare

A complete selection of service contract solutions to manage maintenance costs and total life cost of a unit.

TouchLog data capture

Temperature data capture and printing,approved to EN 12830, CE mark and IP-65 standards.

Wintrac (data analysis software)

User-friendly software compatible with DSR controller for configuration file downloads.

USB Datalogger

Humidity, temperature and dewpoint recorder.

Datalogger Jr

Programmable temperature recorder.

WLOG DATALOGGER

Wireless temperature monitoring and data logging solutions for transport refrigeration units.

Door switches

Reduce load temperature rise and save fuel when doors are opened.

Din adapter

The din adaptor box permits the adaption of the DSR controller to the vehicle dashboard. The aesthetically designed box allows the placement of the DSR controller in any available radio slot compartment in the driver cab.

Hose covers

Full protection of hoses and cables on the road and full resistance under all climate adversities. Designedto seamlessly integrate into unit while complimenting the reefer and vehicle aesthetics while delivering exceptional durability. User-friendly installation (only for chassis installations, no vans).

Muffler kit

Thermo King muffler eliminates the vibration and noise in the interior cab of small vehicles. The muffler is attached to the refrigeration system thus eliminating the vibration transfer from the unit to the driver cab enhancing user comfort and ease of use.

Snow covers

Thermo King snow covers are designed to protect your unit against extreme climate conditions. The aerodynamically design snow cover prevents the buildup of snow and ice on the units fans which can lead to downtime and further maintenance costs resulting in longer running times for your unit.

Harness and Hose Extensions

The 2, 4 or 6 meter harness and hose extensions allows evaporators to be located to suit any customer needs with an extremely easy installation (plug and play connection with corresponding hose splice connectors) and provides full flexibility to position the evaporators especially in multi-temperature applications.

BLUEBOX LITE

Thermo King's vehicle-powered truck telematics solution for V- and VX-Series units.

Receive critical controller information along with temperature, position, and other crucial data in near real-time thanks to 4G connectivity and high logging frequency. Conveniently access the data via our cost-effective TracKing subscription.

The BlueBox Lite device does not require the installation of an additional data logger, as it’s conveniently connected to your DSR controller.

For compliance with the EN12830 European standard, just add the TouchLog data logger.

Furthermore, it allows you to integrate the collected data from the vehicle-powered unit into any third-party website or back-end system.

Features

- 4G network connectivity

- Direct connection to DSR controller or TouchLog data logger

- Quick and easy installation

- Data sharing with 3rd parties

- Temperature, position and machine data displayed on TracKing

- Compatible with TouchLog

- 2-year warranty

- 2-way set-point change capability

DIRECT SMART REEFER (DSR) CONTROLLER

The Direct Smart Reefer (DSR) Controller brings state of the art microprocessor-based intelligent control to Thermo King’s vehicle powered product range.

Key features

• — straightforward to understand and use even for new operators.

• — Flexible, modular and stylish.

• — Designed for error-free control and monitoring of the refrigeration unit from inside the cab.

• — Advanced control features.


The DSR in-cab display

• — Provides the ideal user interface.

• — LED backlighting ensures the screen remains bright and legible in all light conditions.

• — Multiple functions to suit specific transport applications, ensuring optimal temperature control and product integrity.

• — Ease to interprete malfunction alarm codes allow drivers to take rapid and appropriate remedial action.


Standard features

• — Keeps your load and unit in top shape with continuous monitoring.

• — Seamless operation: Unit restarts automatically after any power cut, keeping your load protected.

• — Records usage duration (travel & stationary).

• — Minimize downtime with intuitive alerts.

• — Prevent downtime with scheduled servicing notifications.

• — Manual or automatic defrost to schedule defrost initiation and termination to suit the application.

• — Tamper-proofing by removing the in-cab control panel after presetting.

• — Vehicle battery protection with low voltage monitoring, sequential evaporator starts and “soft starting” during unit power-up to avoid power “spikes”.

• — Compressor protection with the optional “soft start” feature.

• — Load protection by delaying evaporator start-up after defrosts.


The DSR control board

• — A modular concept that separates control and power relay boards.

• — Improved reliability, serviceability and component replacement.

• — Lower service and maintenance costs.


Programmable features

• — Set point limits for optimum temperature range selection.

• — Set point lock to prevent the driver modifying a predetermined temperature.

• — On-screen alarm when return air temperature is out of range.

• — Door switches to shut down the unit each time the door is opened, to maintain the box temperature and protect the load.

• — Wintrac Windows-based software package for configuration parameter editing in the field.


Multi-temperature features

• — Each compartment can be switched on/off independently.

• — Improved door switch functionality allows each evaporator to be controlled independently.

• — Set point range can be independently adjusted for each compartment.

• — Operation in single temperature mode for increased flexibility.

MAX YOUR COOL

Peace of mind with Thermo King service contracts.

Keeping your V- and VX-Series equipped fleet on the road 24/7 takes a substantial amount of time and effort. Rely on Thermo King to help. Our customized service contracts empower fleet operators to select the exact services needed to maintain and improve their fleet utilization.

recommended contracts:

Flexible service support

From MaintenancePlus, which covers scheduled fleet maintenance, to the full service offered by ComfortPlus, Thermo King service contracts are tailored to your fleet’s needs.

Extended warranty

Increase your peace of mind by extending your warranty for your Thermo King refrigerated units.

24/7 fleet monitoring service

Our experts monitor your fleet in real-time around the clock, responding to every issue and arranging solutions as soon as a problem is detected.

roadside assistance

With every contract, you enjoy peace of mind with comprehensive reakdown call-out support and multilingual assistance.

Get more out of your unit with our aftermarket services

Take your unit to the max. Thanks to Thermo King’s complete range of services and solutions, you can take your fleet to new heights of performance. With our global dealer network with 24/7 availability, you’ll always have a certified Thermo King dealer to count on.

Thermo King helps your fleet reach its maximum potential and gets it ready for any challenge. All day, every day.

Maximize Uptime
Avoid costly downtime and keep your units going and earning for longer.

Maximize Sustainability
Limit your fleet’s footprint and save smart on energy.

Maximize Savings
Reduce service and maintenance costs, and maximize your units’ residual value.

Maximize Control
Monitor and maintain critical cargo quality every step of the way.

Take it to the Max with BlueBox Lite

BlueBox Lite gives you the data you need to make your operations smarter and more efficient

A data recording device, standard embedded in your unit, registers information on your refrigeration unit in near realtime, thanks to 4G connectivity and high logging frequency.

Once activated you will get information on unit position, alarms, temperature, door opening and you will be able to re-set temperature from afar.

Ask your dealer for more info on our activation and annual subscription plans.

V-SERIES AND VX-SERIES

High performance, sustainable refrigeration with precise temperature control

• — Sustainability boost

• Low weight and an aerodynamic design help reduce your fuel consumption and environmental impact.

• With its extremely low emissions, noise, and vibrations, the VX-Series gives you access to ULEZs and LEZs day and night.


• — Versatile power sources

• Suitable for diesel, non-diesel, and battery pack applications, and flexible alternative power sources when the engine is off.


• — Precision cooling

• Extremely accurate set point temperature control within+/-1°C.
