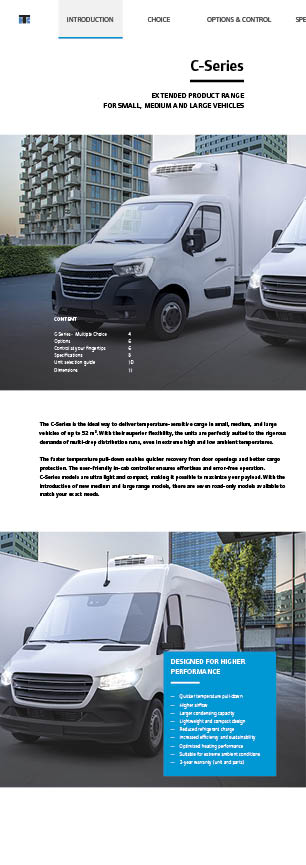

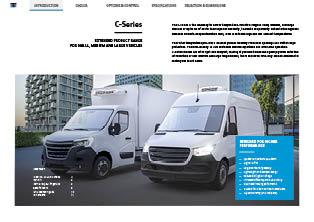

C-Series

Extended product range for small, medium and large vehicles

The C-Series is the ideal way to deliver temperature-sensitive cargo in small, medium, and large vehicles of up to 52 m3. With their superior flexibility, the units are perfectly suited to the rigorous demands of multi-drop distribution runs, even in extreme high and low ambient temperatures.

The faster temperature pull-down enables quicker recovery from door openings and better cargo protection. The user-friendly in-cab controller ensures effortless and error-free operation. C-Series models are ultra light and compact, making it possible to maximize your payload. With the introduction of new medium and large range models, there are seven road-only models available to match your exact needs.

designed for higher performance

• — Quicker temperature pull-down

• — Higher airflow

• — Larger condensing capacity

• — Lightweight and compact design

• — Reduced refrigerant charge

• — Increased efficiency and sustainability

• — Optimized heating performance

• — Suitable for extreme ambient conditions

• — 2-year warranty (unit and parts)

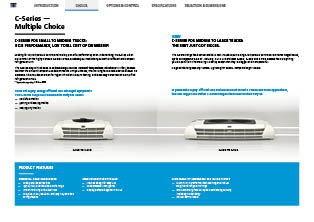

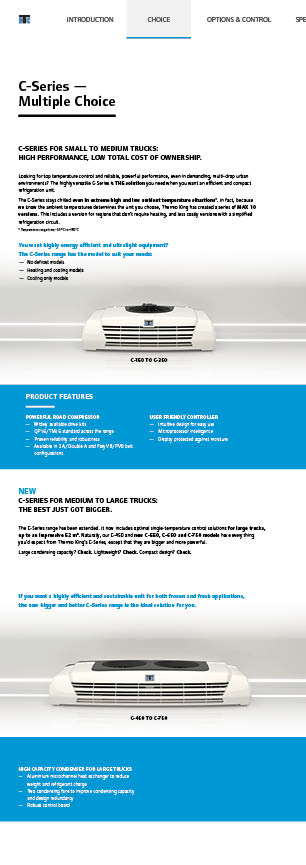

C-Series —Multiple Choice

C-SERIES FOR SMALL TO MEDIUM TRUCKS:
HIGH PERFORMANCE, LOW Total cost of ownership.

Looking for top temperature control and reliable, powerful performance, even in demanding, multi-drop urban environments? The highly versatile C-Series is THE solution you need when you want an efficient and compact refrigeration unit.

The C-Series stays chilled even in extreme high and low ambient temperature situations*. In fact, because we know the ambient temperatures determines the unit you choose, Thermo King has created a series of MAX 10 versions. This includes a version for regions that don’t require heating, and less costly versions with a simplified refrigeration circuit.

* Temperature range from -30°C to +55°C

You want highly energy efficient and ultralight equipment?
The C-Series range has the model to suit your needs:

• — No defrost models

• — Heating and cooling models

• — Cooling only models


product features

Powerful road compressor

• — Widely available drive kits

• — QP16/TM16 standard across the range

• — Proven reliability and robustness

• — Available in 2 A/Double A and Poly V8/PV8 belt configurations

User friendly controller

• — Intuitive design for easy use

• — Microprocessor intelligence

• — Display protected against moisture

NEW

C-SERIES FOR MEDIUM TO LARGE TRUCKS:
THE BEST JUST GOT BIGGER.

The C-Series range has been extended. It now includes optimal single-temperature control solutions for large trucks, up to an impressive 52 m3. Naturally, our C-450 and new C-550, C-650 and C-750 models have everything you’d expect from Thermo King’s C-Series, except that they are bigger and more powerful.

Large condensing capacity? Check. Lightweight? Check. Compact design? Check.

If you want a highly efficient and sustainable unit for both frozen and fresh applications,
the new bigger and better C-Series range is the ideal solution for you.

High capacity condenser for large trucks

• — Aluminium microchannel heat exchanger to reduce weight and refrigerant charge

• — Two condensing fans to improve condensing capacity and design redundancy

• — Robust control board

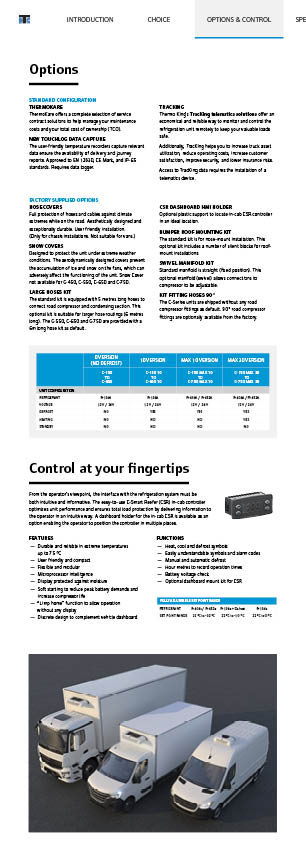

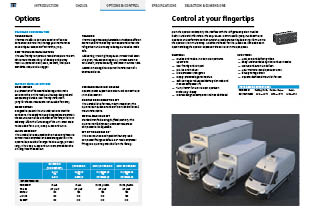

Options

Standard configuration

ThermoKare

ThermoKare offers a complete selection of service contract solutions to help manage your maintenance costs and your total cost of ownership (TCO).

New TouchLog data capture

• The user-friendly temperature recorders capture relevant data ensure the availability of delivery and journey reports. Approved to EN 12830, CE Mark, and IP-65 standards. Requires data logger.


Tracking

• Thermo King’s TracKing telematics solutions offer an economical and reliable way to monitor and control the refrigeration unit remotely to keep your valuable loads safe.

• Additionally, TracKing helps you to increase truck asset utilization, reduce operating costs, increase customer satisfaction, improve security, and lower insurance risks.


Access to TracKing data requires the installation of a telematics device.

Factory supplied options

Hose Covers

Full protection of hoses and cables against climate extremes while on the road. Aesthetically designed and exceptionally durable. User friendly installation.
(Only for chassis installations. Not suitable for vans.)

Snow Covers

Designed to protect the unit under extreme weather conditions. The aerodynamically designed covers prevent the accumulation of ice and snow on the fans, which can adversely affect the functioning of the unit. Snow Cover not available for C-450, C-550, C-650 and C-750.

Large Hoses Kit

The standard kit is equipped with 5 metres long hoses to connect road compressor and condensing section. This optional kit is suitable for larger hose routings (6 metres long). The C-550, C-650 and C-750 are provided with a 6m long hose kit as default.

CSR Dashboard HMI Holder
Optional plastic support to locate in-cab CSR controller in an ideal location.

Bumper roof mounting kit

The standard kit is for nose-mount installation. This optional kit includes a number of silent blocks for roof-mount installations.

Swivel manifold kit

Standard manifold is straight (fixed position). This optional manifold (swivel) allows connections to compressor to be adjustable.

Kit Fitting Hoses 90°

The C-Series units are shipped without any road compressor fittings as default. 90° road compressor fittings are optionally available from the factory.

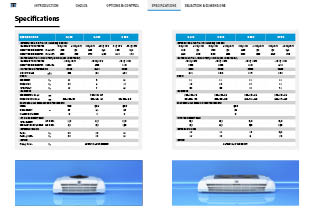

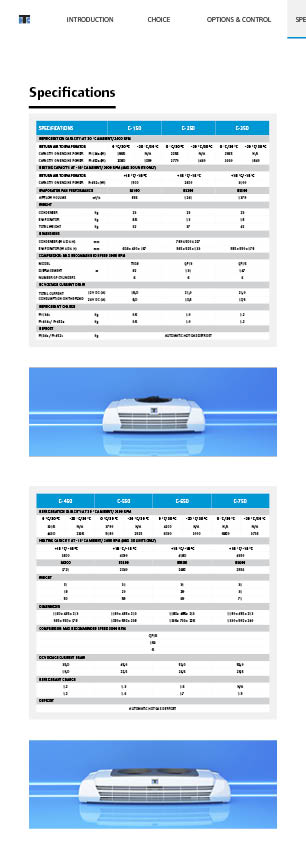

Specifications

Unit selection guide

The table above is a guide to select the right unit in the new C-Series to match your application. These figures are maximum vehicle volumes, calculated on road operation, at 2400 rpm compressor speed and 30 °C/40 °C ambient temperature. Recommendations are based on precooled loads and a K value of 0,35 W/m2K is used for frozen goods
(-20 °C) and 0,5 W/m2K for fresh goods (0 °C and +6 °C) for a distribution cycle of 8 hours.

Recommendations are not a guarantee of performance as there are many variables to be considered.
See your Thermo King dealer for complete information.

C-150 to C-350

Up To 28 m3

C-450 to C-650

Up To 47 m3

C-550 to C-750

Up To 52 m3

WARRANTY CONDITIONS

Thermo King warrants the new product delivered will be free of defects in material and workmanship for the period of time specified in the applicable warranties. Specific terms of the Thermo King warranty are available on request.

Contact
your nearest dealer

The Thermo King dealer network boasts over 500 authorized service points in
75 countries that are open and available 24/7.
