ColdCube™

Flexible cooling solutions

Portable and mobile refrigeration

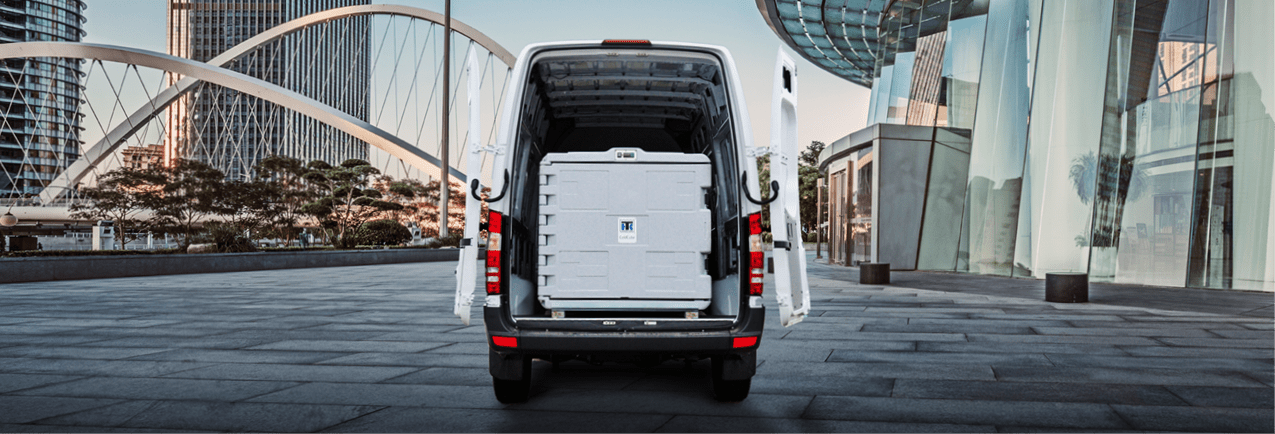

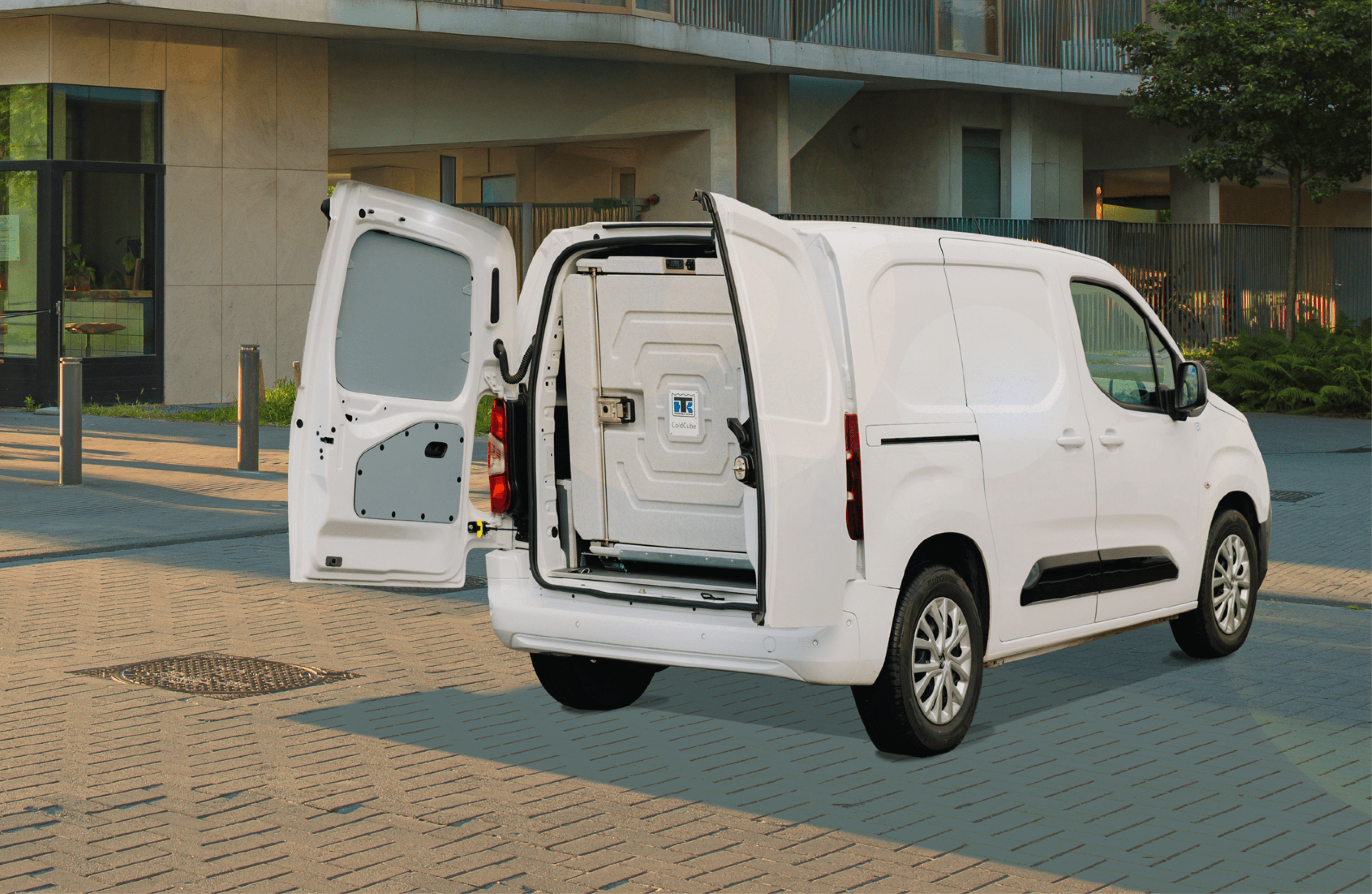

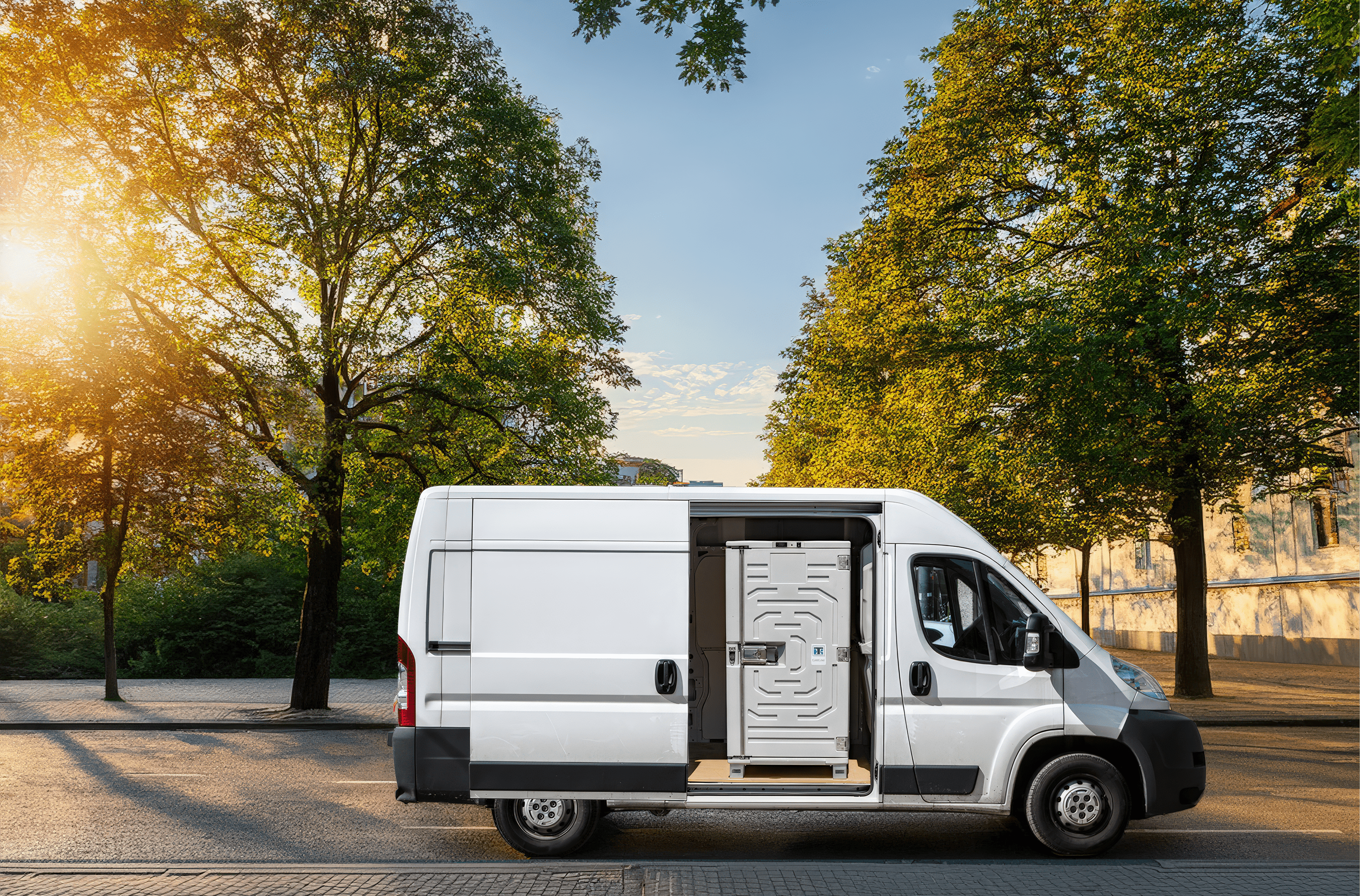

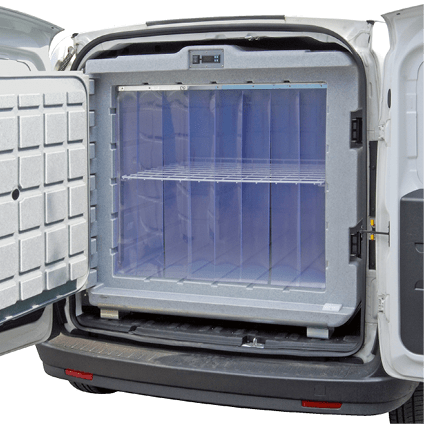

Increase the flexibility of your fleet by extending your transport options with Thermo King ColdCube™ containers. Perfectly sized for small vans, trucks, and trailers, these fully connected and portable units offer extremely precise heating, cooling, and freezing solutions for all applications, including pharma and last mile deliveries. With freezing, cooling and heating options available, ColdCube™ can be quickly combined with dry good transport for an easy answer to peak demand – while meeting all regulations.

Pharma logistics and packaging

• — Biomedical product transport

• — PharmaSolutions certification for Good Distribution Practice (GDP) compliance

• — Can be combined in a PharmaKare service contract customized to your transportation needs

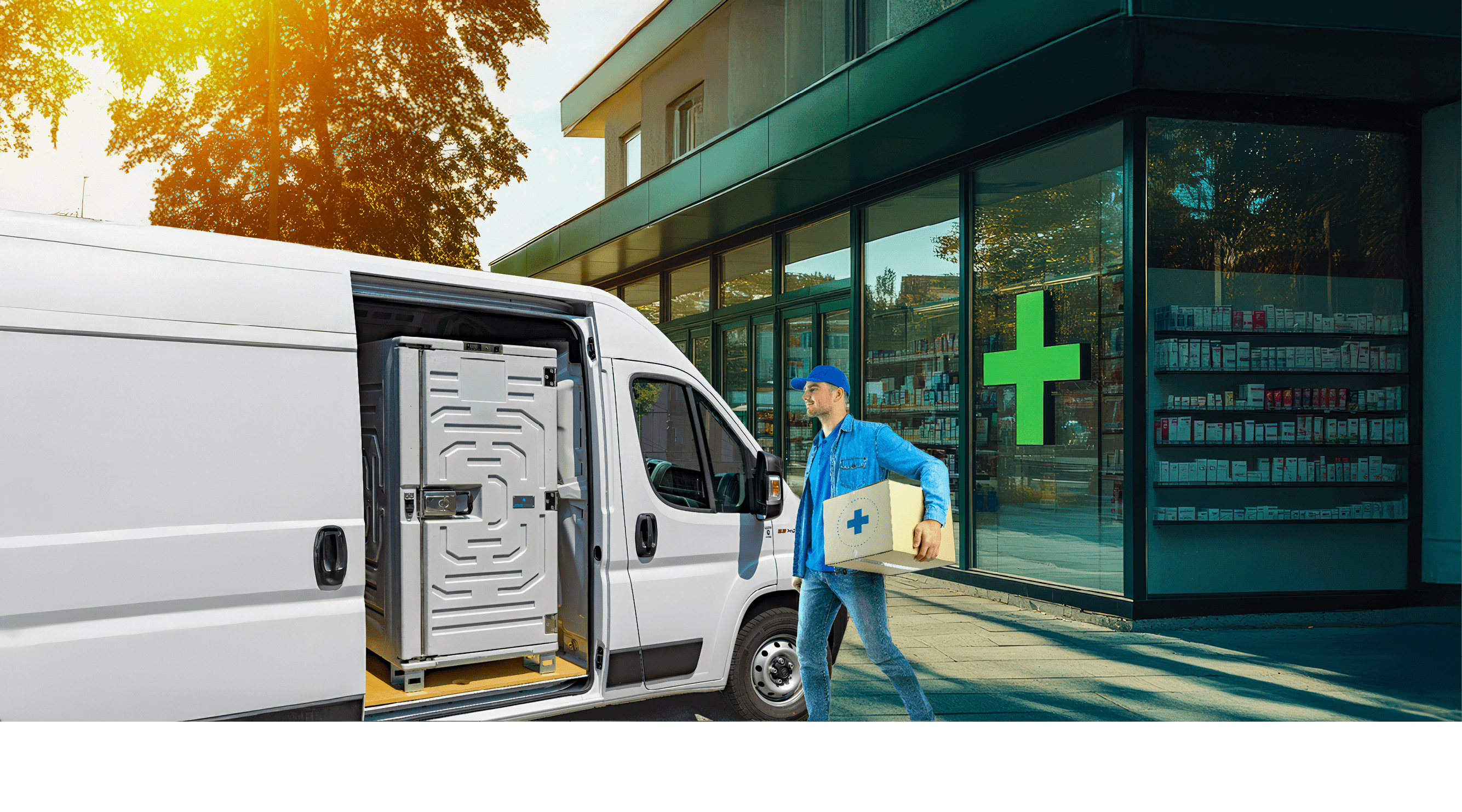

Pharma last-mile distribution

• — Ideal for transportation from distribution hubs centers to pharmacies and from wholesalers direct to patients

• — PharmaSolutions certification for Good Distribution Practice (GDP) compliance

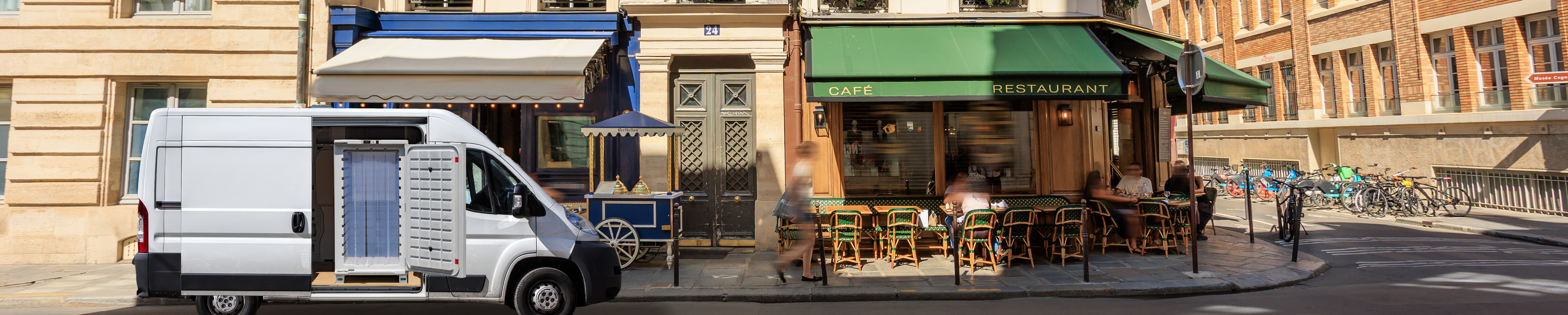

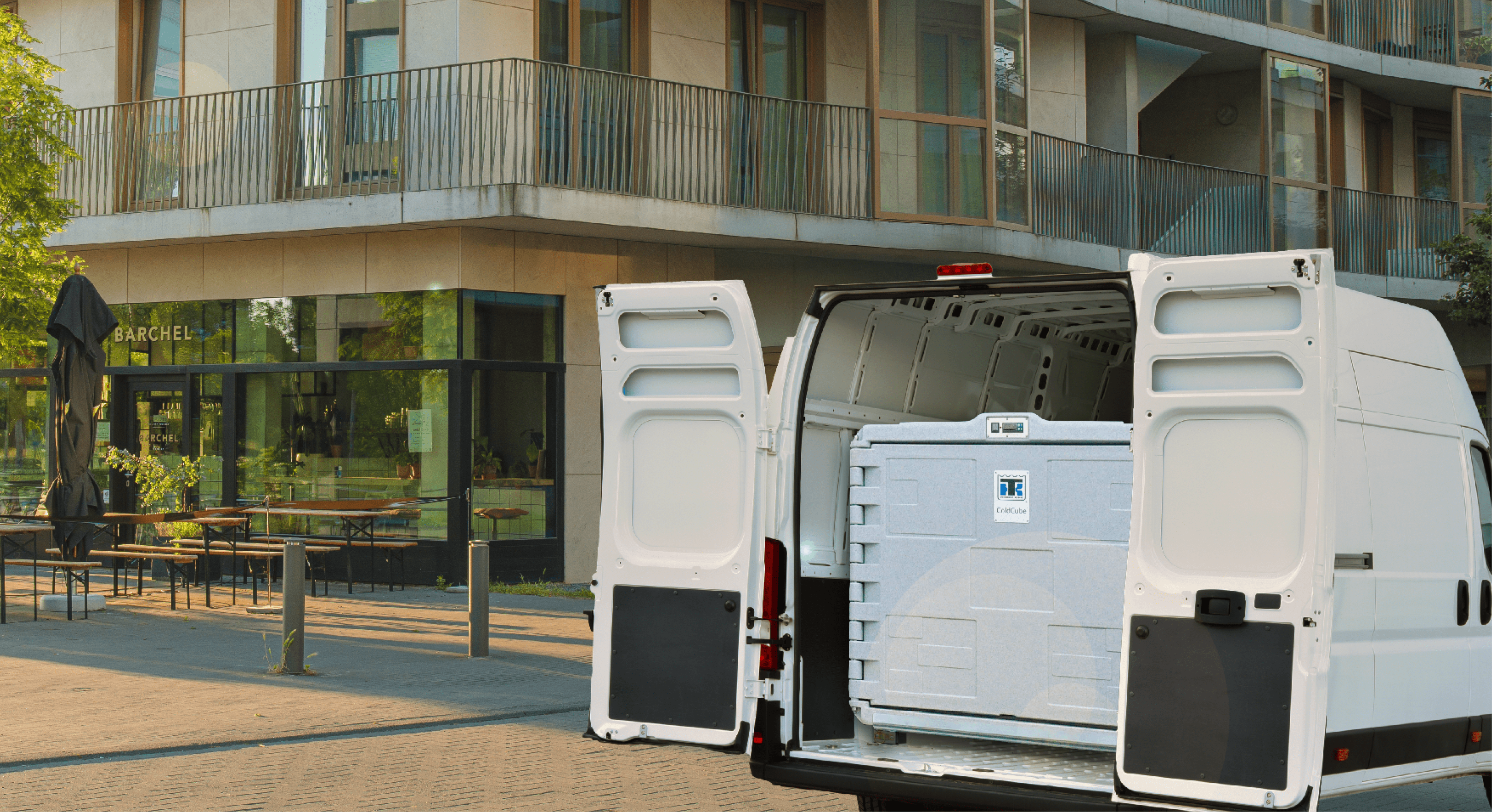

Last mile deliveries

• — Optimize smaller load refrigeration by combining it with non-refrigerated products in vans, trucks, and trailers.


Rental and leasing option

• — Useful during peak distribution periods

• — Lower cost and flexible multi-temperature solution

ColdCube™

Features

Flexible freezing (FDN), cooling (NDN) and heating (NDH)

• — 3 temperature settings:

• — Freezing (min. > -21°C, and -24°C for models featuring a new compressor)

• — Cooling (> +0°C)

• — Cooling and heating (+30°C to +0°C)

• — Versatile to suit different applications and cargos

• — Precision temperature control up to 1°C stability within the cargo space for NDH models

• — Reliable heating and cooling in all ambient conditions

• — Homogeneous air flow distribution


Thermo King’s ColdCubes™ have undergone years of extensive researching and testing, ensuring unmatched reliability, operating economy, and performance, even in the harshest conditions.

Durable and lightweight

• — One-piece construction for robustness, strength, and lightness

• — Lighter than assembled containers

• — Constructed from food-grade materials for hygienic operation and easy cleaning

• — Easy to move with integrated handles and transport accessory kits

Sustainability

• — Refrigerant gas R134a, R404A or R452A (depending on the model)

• — High quality insulation up to 130mm thick


Certifications

• — GDP and ATP certifications for all sizes (GDP certifications from June 2025)

• — Certified for CE, TUV, and ATP (FRCX, FRAX, and BRBX class depending on the model)

• — 2 years warranty on parts and labor

Connectivity and visibility

• — Bluetooth turns your mobile device into a wireless user interface

• — Precise temperature set-point control

• — Easy viewing of temperature and status without opening the ColdCube™

• — Use TouchLog to connect with TracKing and TK Reefer for real-time visibility of your cargo


Adapted to your needs

• — Multiple standard configurations

• — For operations and efficiency improvement


ColdCube™

Range

Which ColdCube™ is right for you?

Power supply

Vehicle-powered
Refrigeration is powered by the vehicle’s battery and includes an integrated power disconnector to prevent discharging the vehicle’s battery.

Battery-powered

The onboard battery maintains cooling or heating for up to 12 hours (1 battery) or 99 hours of autonomy (thanks to different battery types). Easy to recharge at any 115 or 230V AC outlet (only for 720L and 760L in cooling & heating).

Hybrid-powered

Refrigeration is powered by both the vehicle’s battery and onboard battery power (only for 720L and 760L models and 720L and 760L models in cooling & heating).

Choose your ColdCube™

Which ColdCube™ configuration works best for you?

Our selection guide shows you the model best suited for your vehicle. Contact your Thermo King Dealer to select the best model and upgrades to suit your needs.

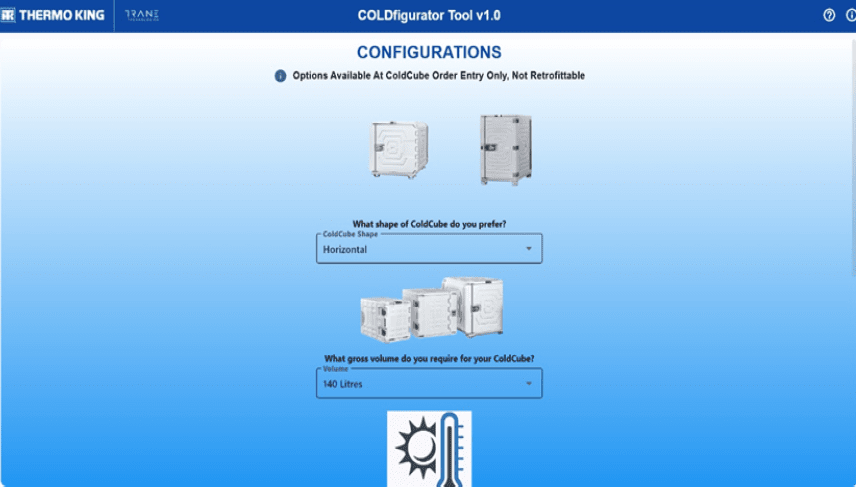

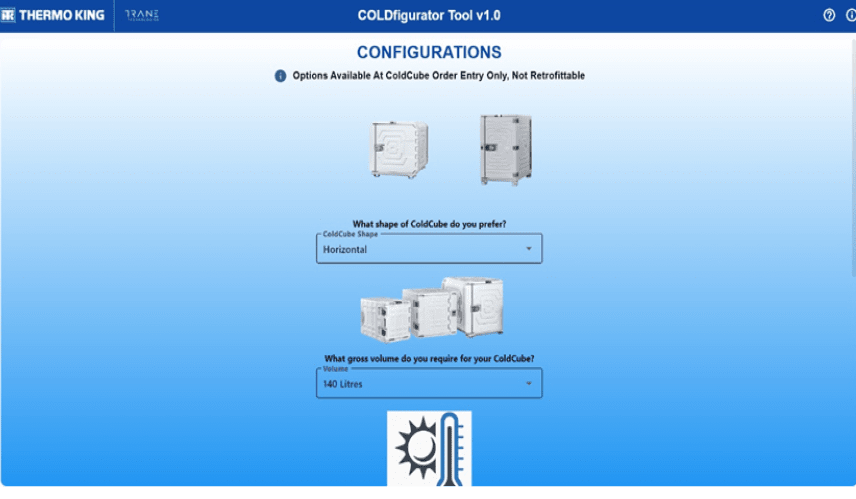

The COLDfigurator is available to help select the right Coldcube and its options and accessories.

Find your nearest dealer on dealers.thermoking.com

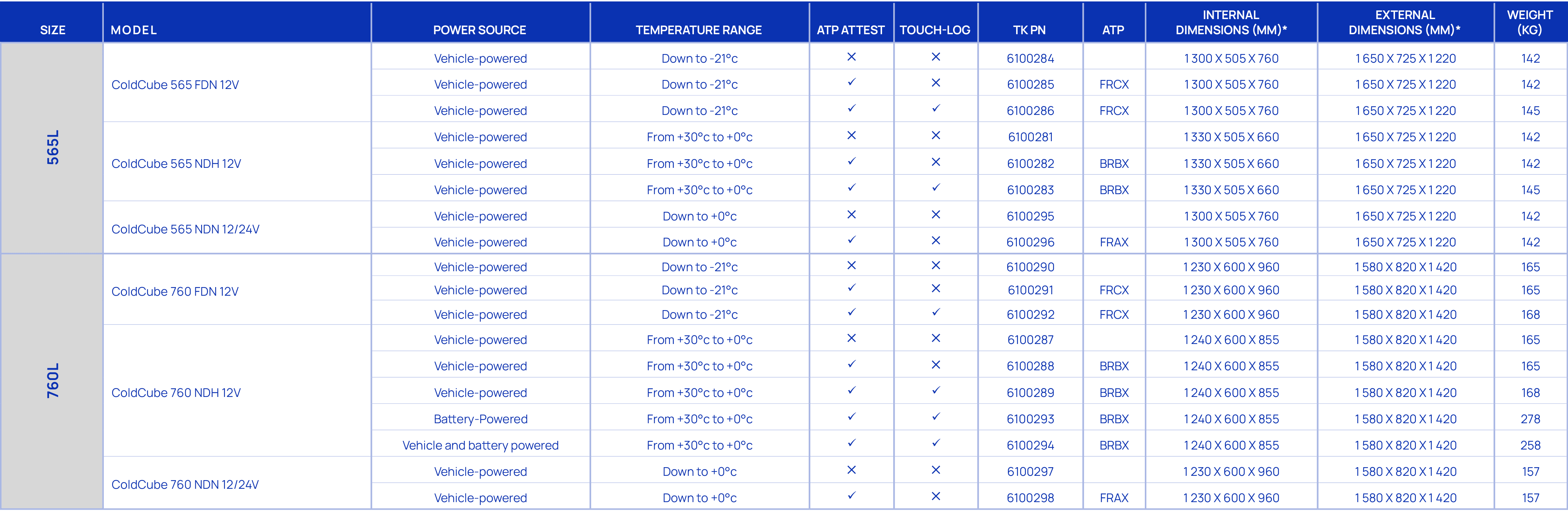

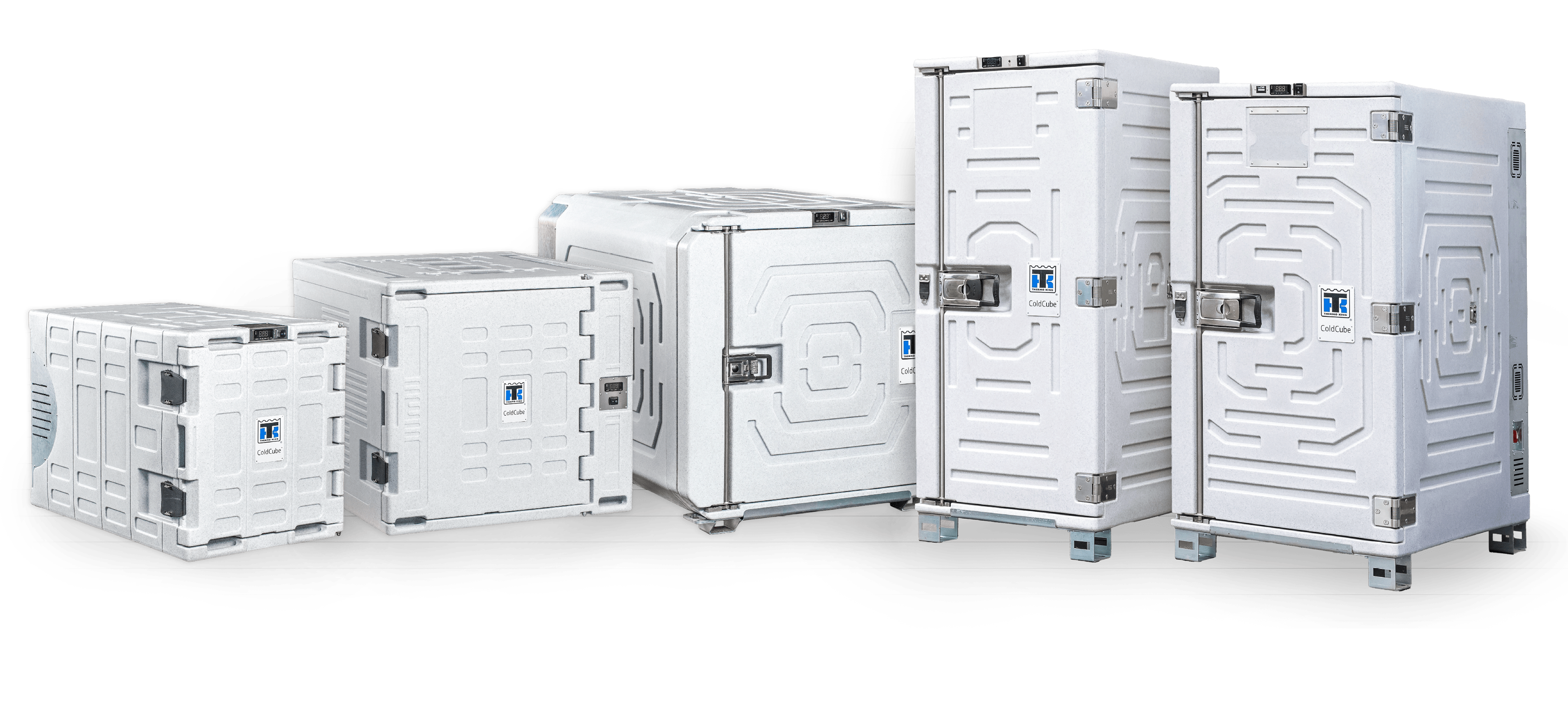

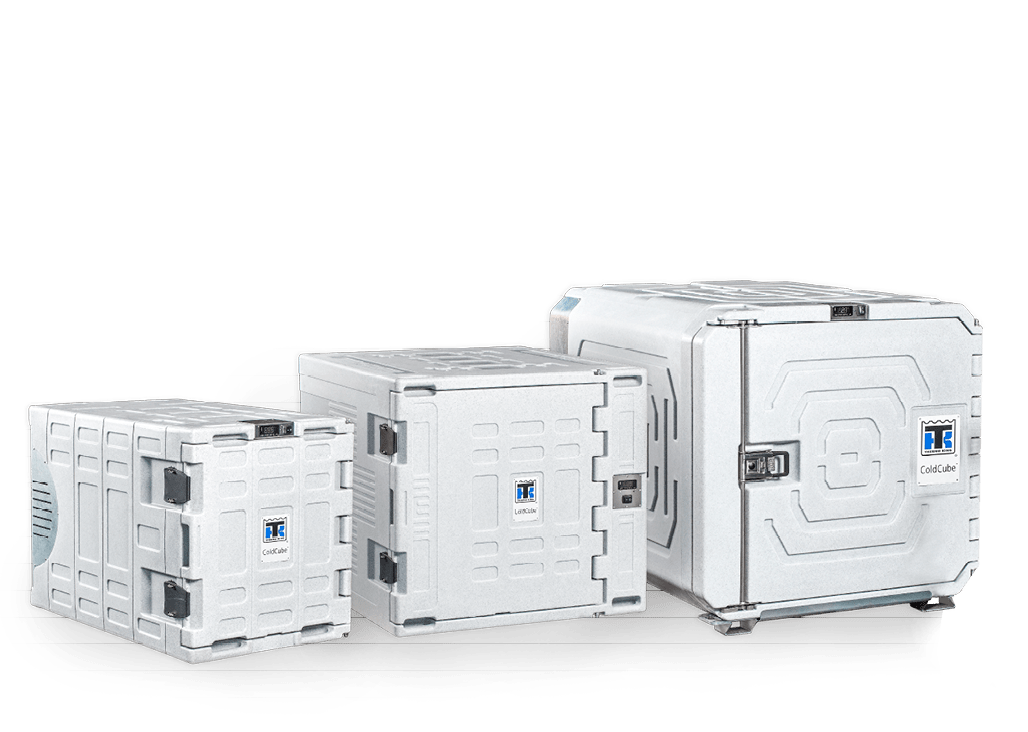

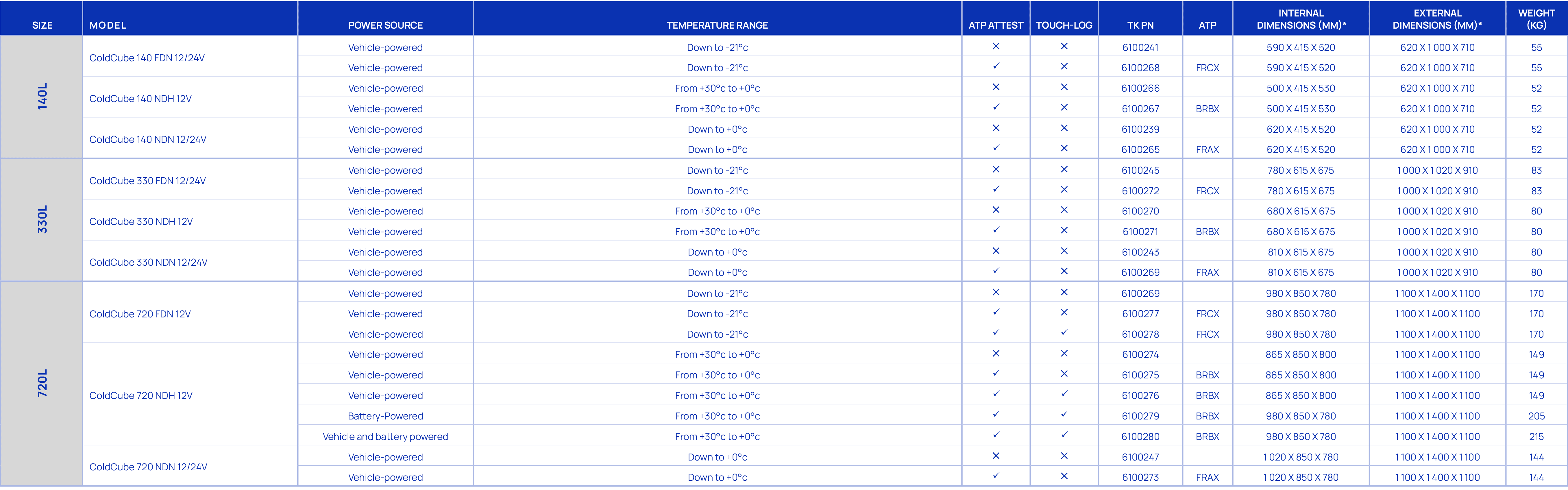

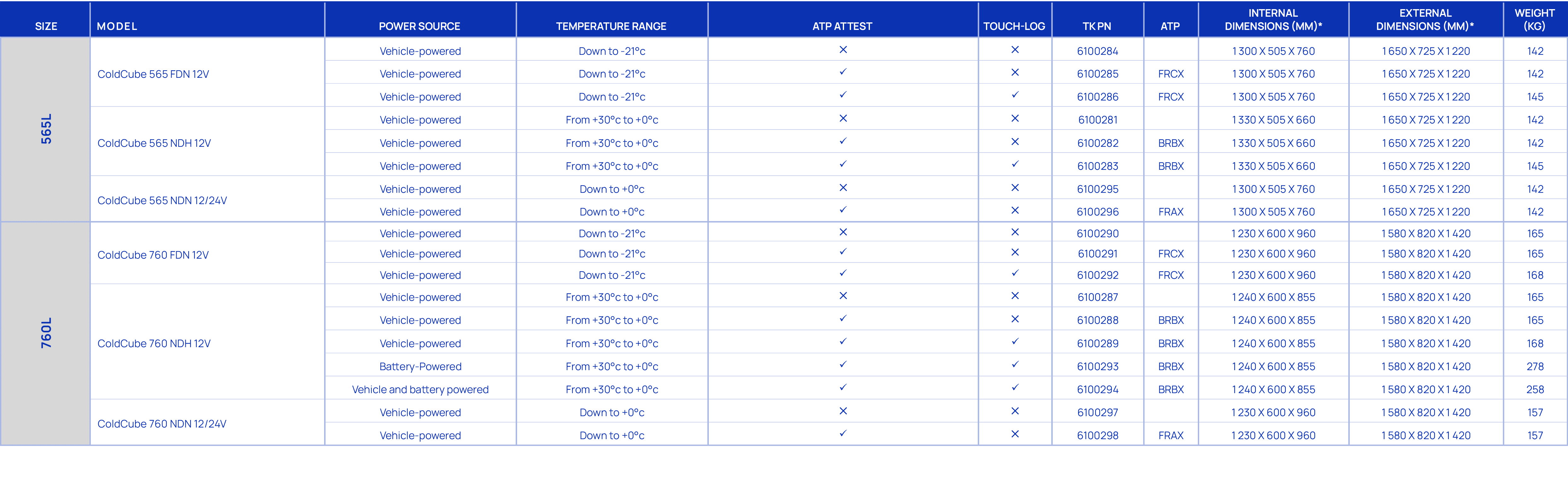

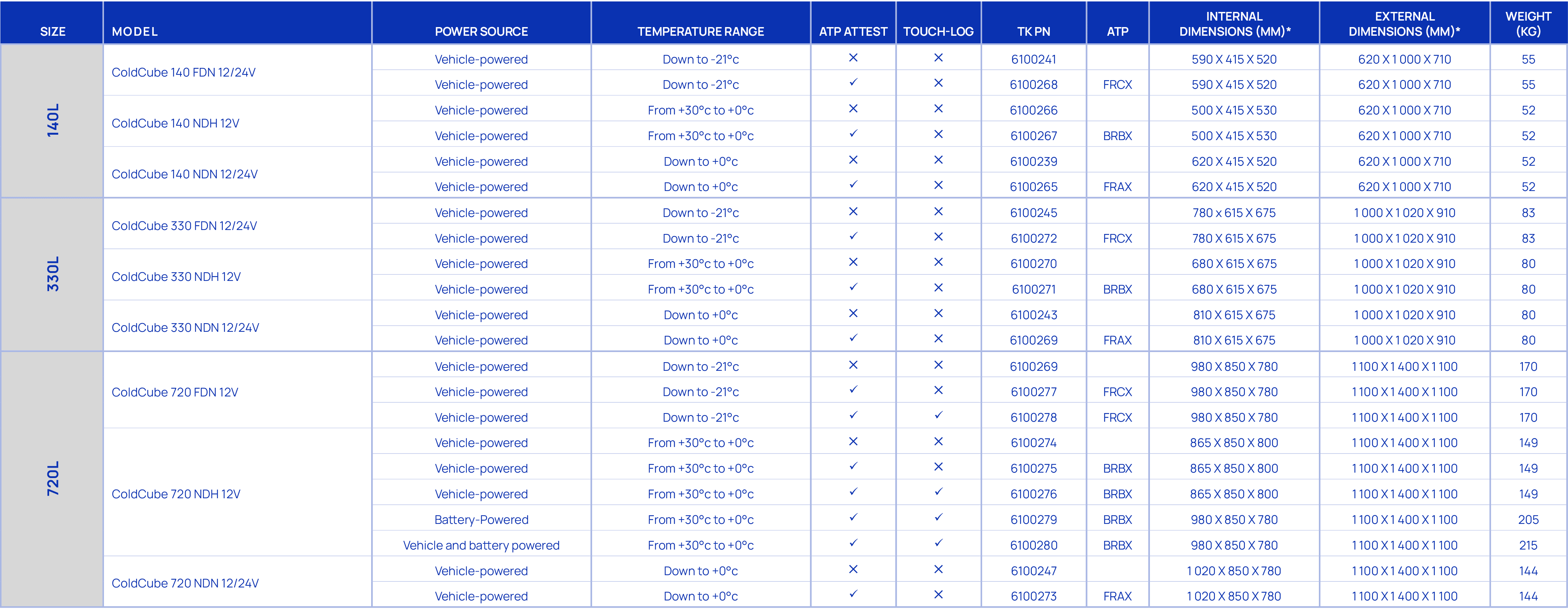

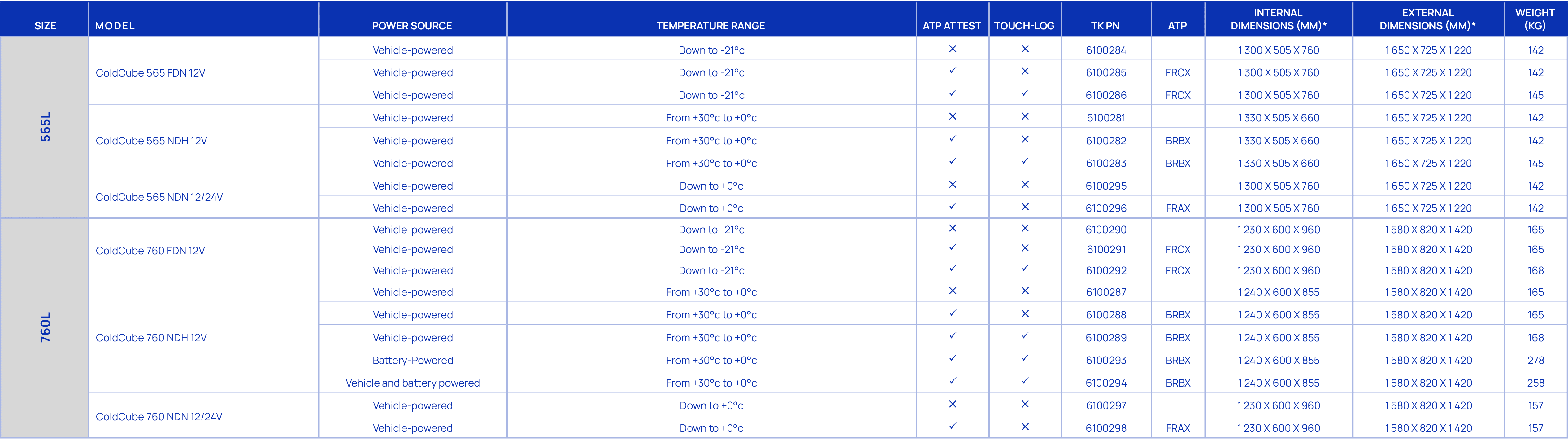

ColdCube™ models & shapes

We offer 6 models in total, all featuring front-opening doors.

Horizontal models

• — 140L
• — 330L
— 720L
• — 1020L NEW

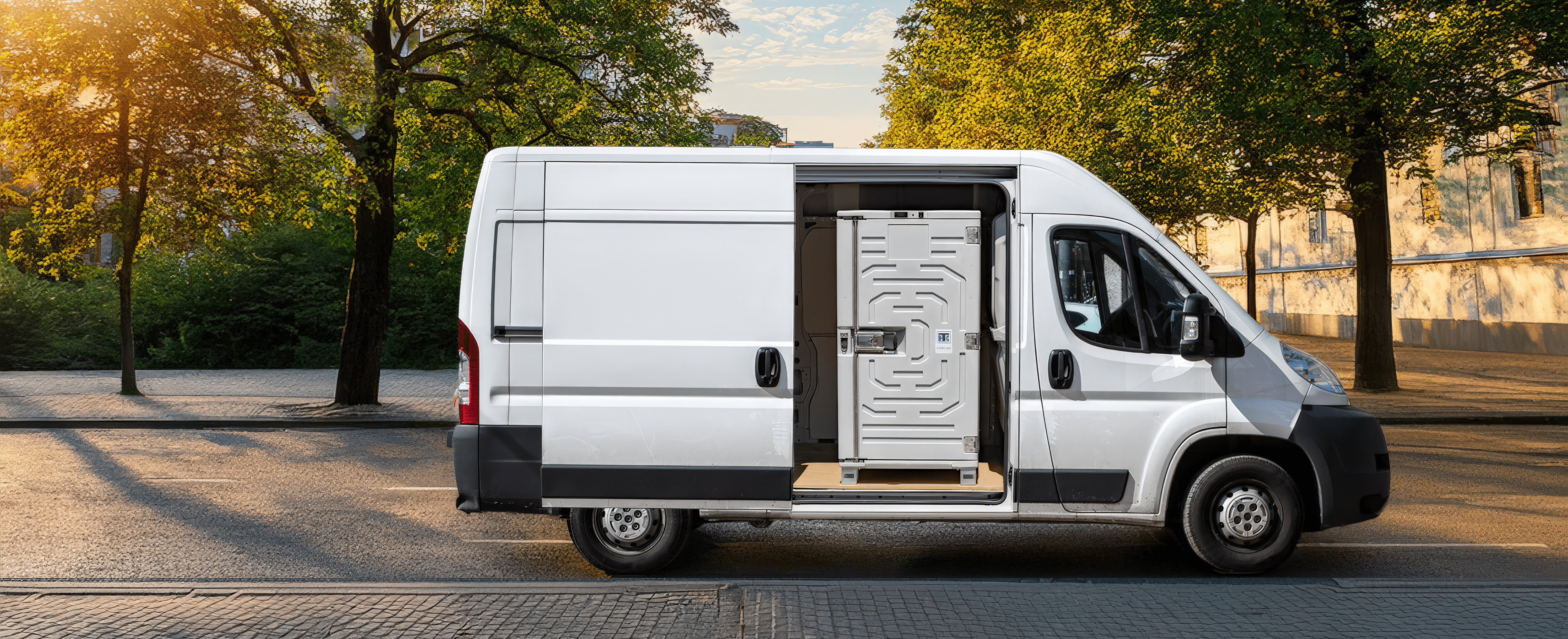

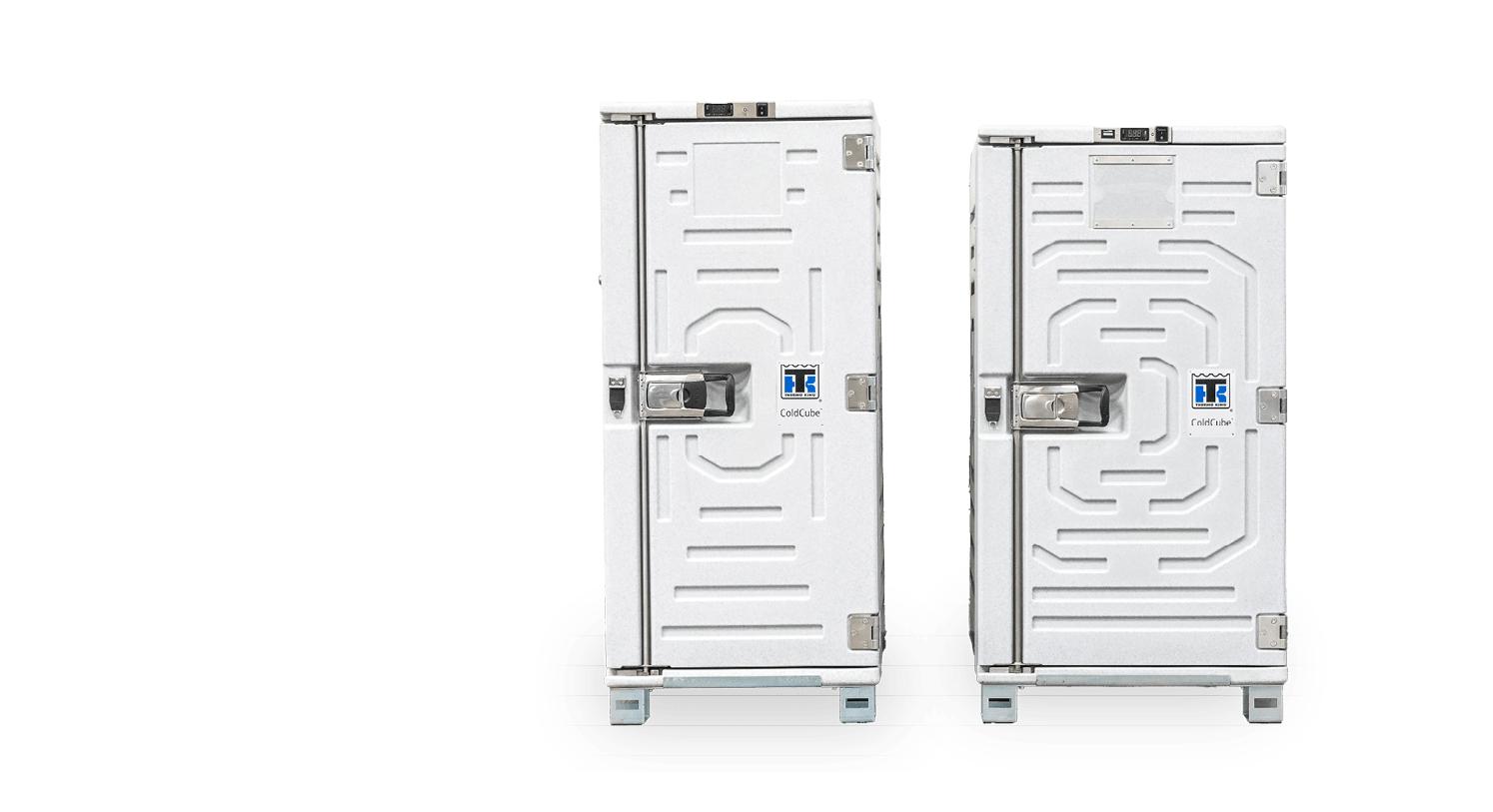

Vertical models

• — 565L
• — 760L

Maximize space and load capacity with flexible interior configurations:

• — Fit to use up to three vertical models in parallel,

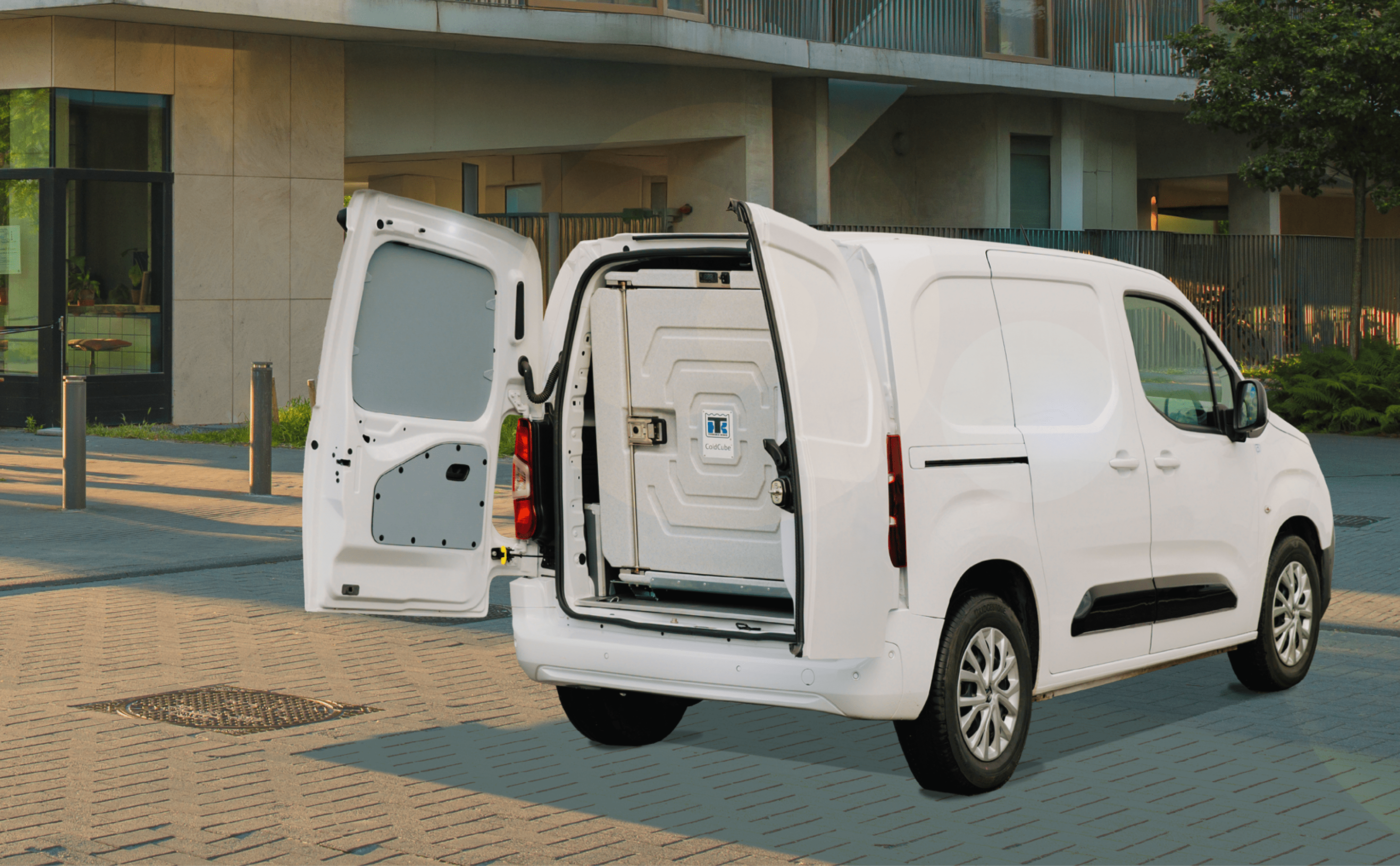

• — Fill entire space with 720L models, designed to fit perfectly in all new Stellantis electric compact vehicles.
• — The new 1020L model is the largest in the range with three temperature options and a new controller.

Performance-enhancing services & solutions

Maximize uptime, sustainability, savings, and control with Thermo King's smart services and digital solutions. Keep your unit performance up and worries down, all day, every day.

Looking for your max?

Thermo King's certified dealers are at your service across Europe 24/7 thanks to our extensive network. Visit our website to locate your closest dealer.

Get your max at europe.thermoking.com/max-your-cool

+  Maximize your uptime
Avoid costly downtime and keep your units going and earning for longer.

+  Maximize your sustainability
Limit your fleet’s footprint and save energy.

+  Maximize your savings
Reduce service and maintenance costs, and maximize your units’ residual value.

+  Maximize your control
Monitor and maintain critical cargo quality at every step of your journey.

Take your refrigeration to the max. Thermo King’s complete range of upgrades for your ColdCube™ solution helps you to optimize your operations.

MAX your ColdCube™

Connected solutions ColdCube™ and telematics

Thermo King ColdCube™ empowers you to monitor and control your cargos with TracKing and TK Reefer. Sensors provide real-time temperature data, track cargo position, and alert you if temperatures go out of range.

Upgrades

Thermo King offers a wide range of factory-fitted and retrofitted upgrades for the ColdCube™. See the next page for more details.

Service contracts

Experience peace of mind with ThermoAssistance, part of ThermoKare service contracts. This multilingual platform offers 24/7 support for Thermo King equipment to customers traveling abroad through the Thermo King dealer network.

Genuine parts

Maintaining your Thermo King ColdCube™ is vital for its high performance, which is why we recommend using genuine Thermo King service parts.

ColdCube™

TK PharmaSolutions

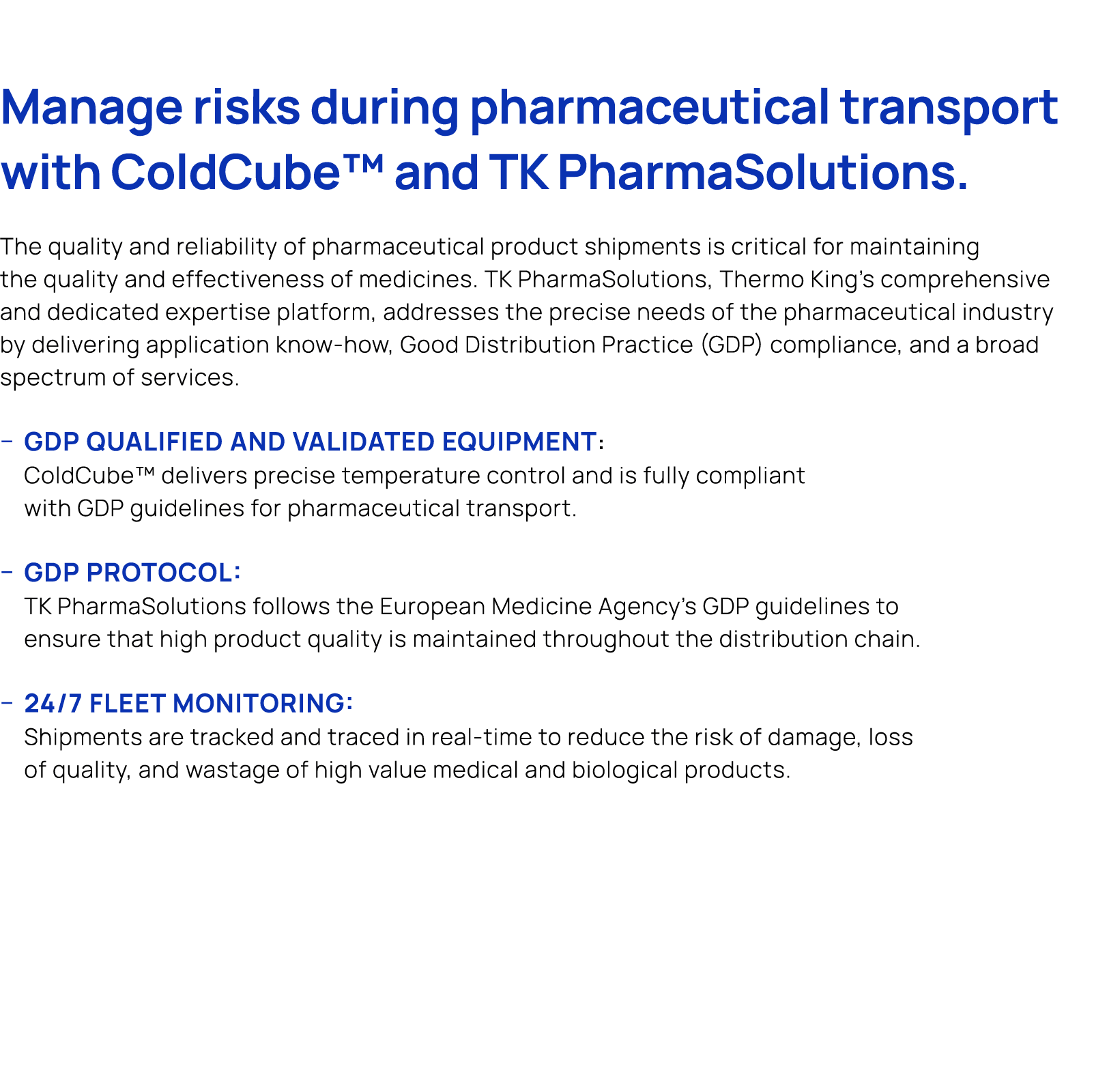

Manage risks during pharmaceutical transport with ColdCube™ and TK PharmaSolutions.

The quality and reliability of pharmaceutical product shipments is critical for maintaining the quality and effectiveness of medicines. TK PharmaSolutions, Thermo King’s comprehensive and dedicated expertise platform, addresses the precise needs of the pharmaceutical industry by delivering application know-how, Good Distribution Practice (GDP) compliance, and a broad spectrum of services.

• — GDP qualified and validated equipment:
  ColdCube™ delivers precise temperature control and is fully compliant with GDP guidelines for pharmaceutical transport.


• — GDP protocol:
  TK PharmaSolutions follows the European Medicine Agency’s GDP guidelines to ensure that high product quality is maintained throughout the distribution chain.


• — 24/7 fleet monitoring:
  Shipments are tracked and traced in real-time to reduce the risk of damage, loss of quality, and wastage of high value medical and biological products.

ColdCube™

Upgrades

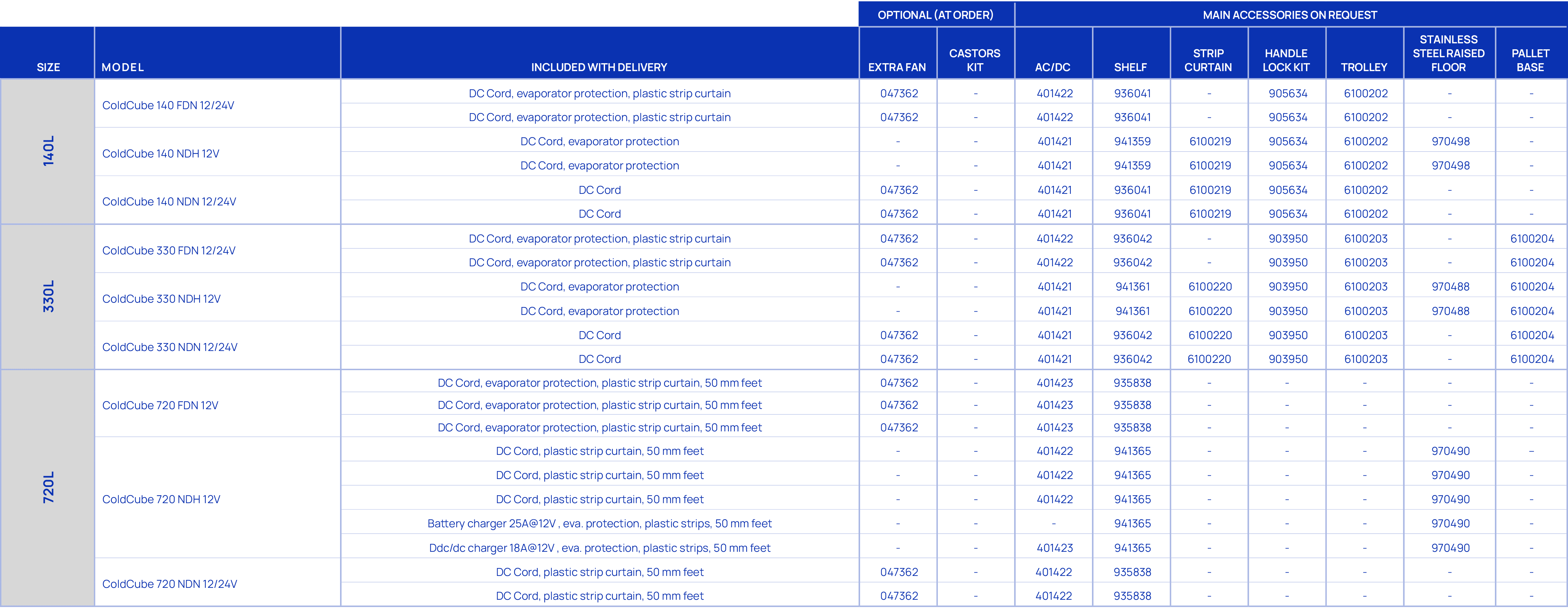

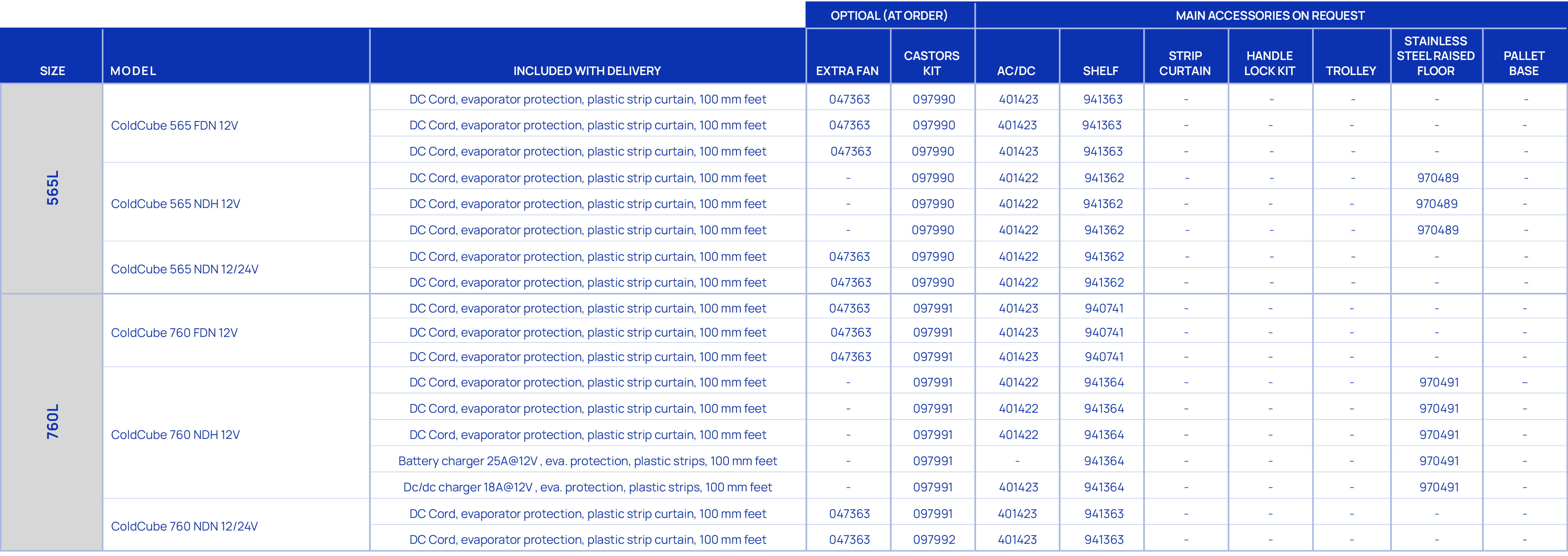

Factory Options

We offer a wide range of upgrades that are available factory-fitted and retrofittable to fully customize your ColdCube™ to your needs.

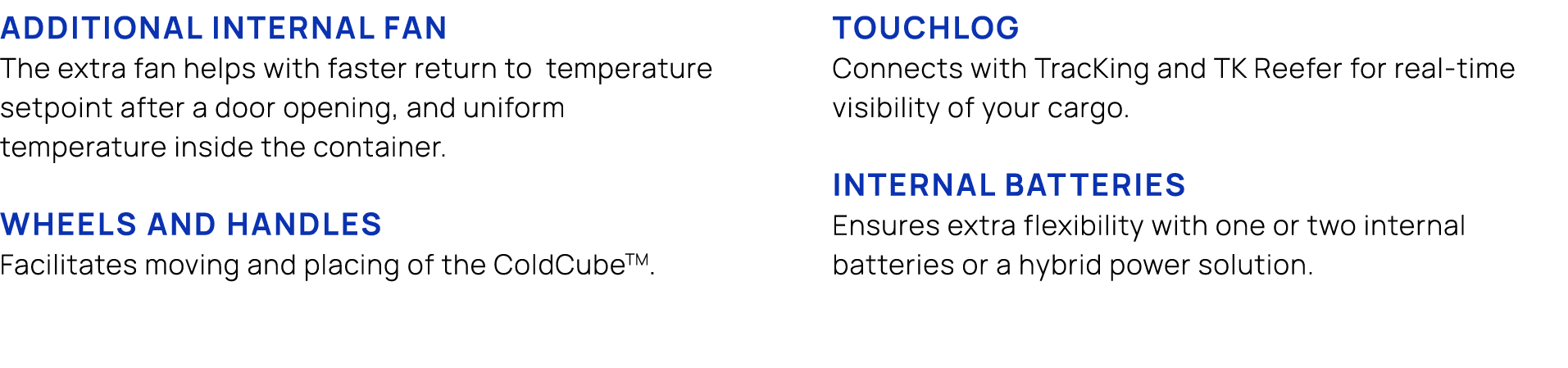

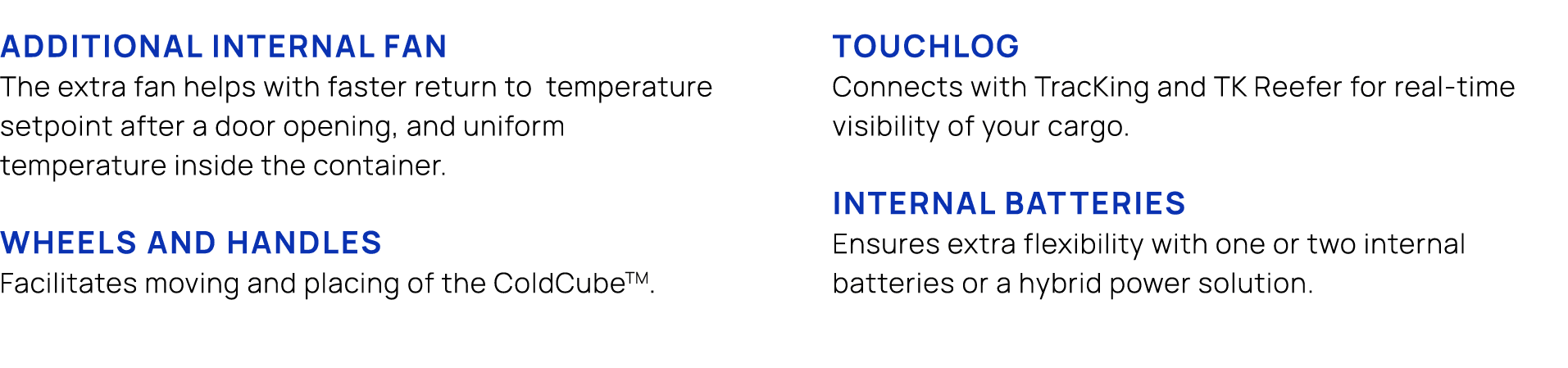

Additional internal fan*

The extra fan helps with faster return to temperature setpoint after a door opening, and uniform temperature inside the container.

Wheels and handles for vertical models

Facilitates moving and placing of the ColdCube™.

Touchlog (independent temperature Datalogger)

Connects with TracKing and TK Reefer for real-time visibility of your cargo. Possibility to integrate TouchLog either at the rear or on top on request.

Internal batteries

Ensures extra flexibility with one or two internal batteries or a hybrid power solution.

*Default in NDH models, option for NDN & FDN models.

Extended autonomy options for some models, see COLDfigurator.

The new controller brings exclusive smart battery monitoring and precision timing to every 1020L model for ultimate cargo security. Available for other models in 2027.

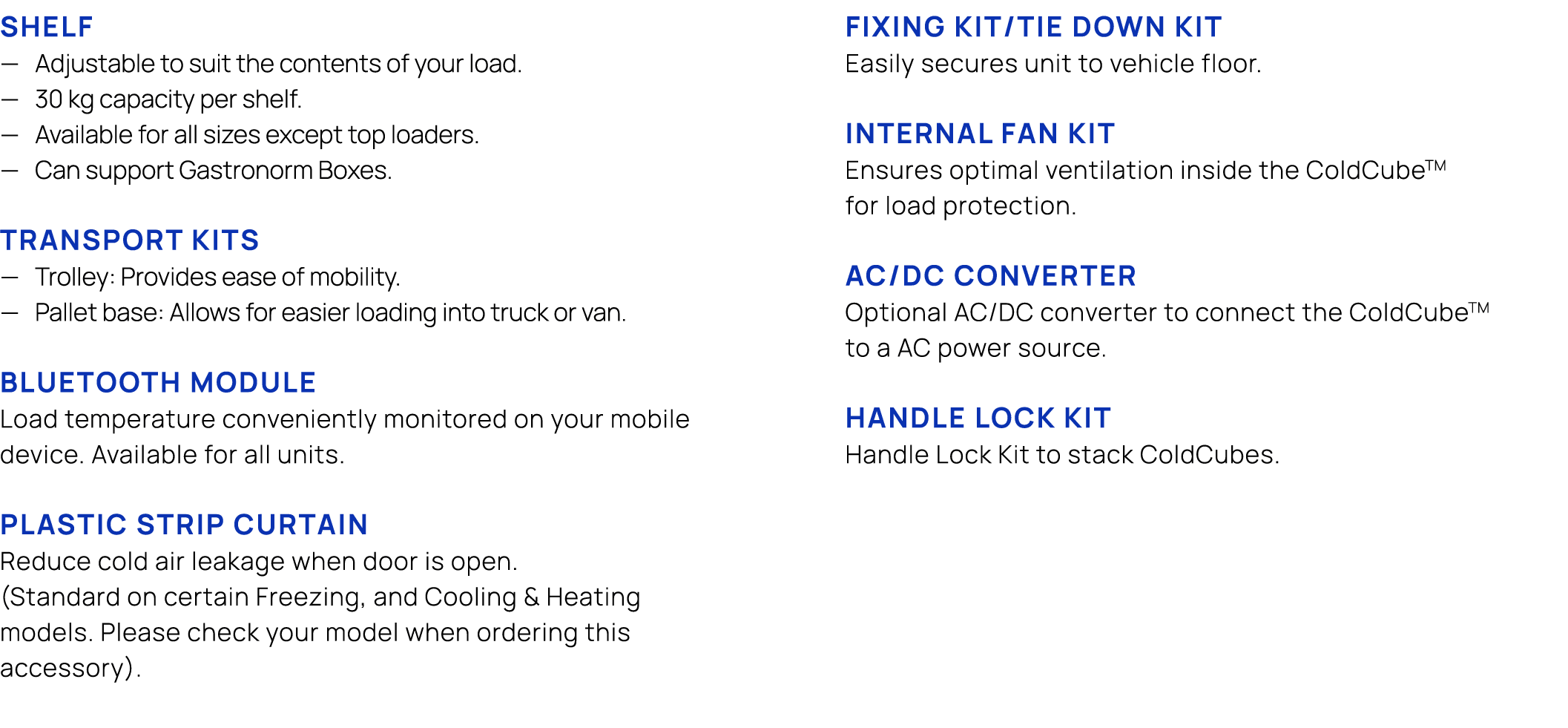

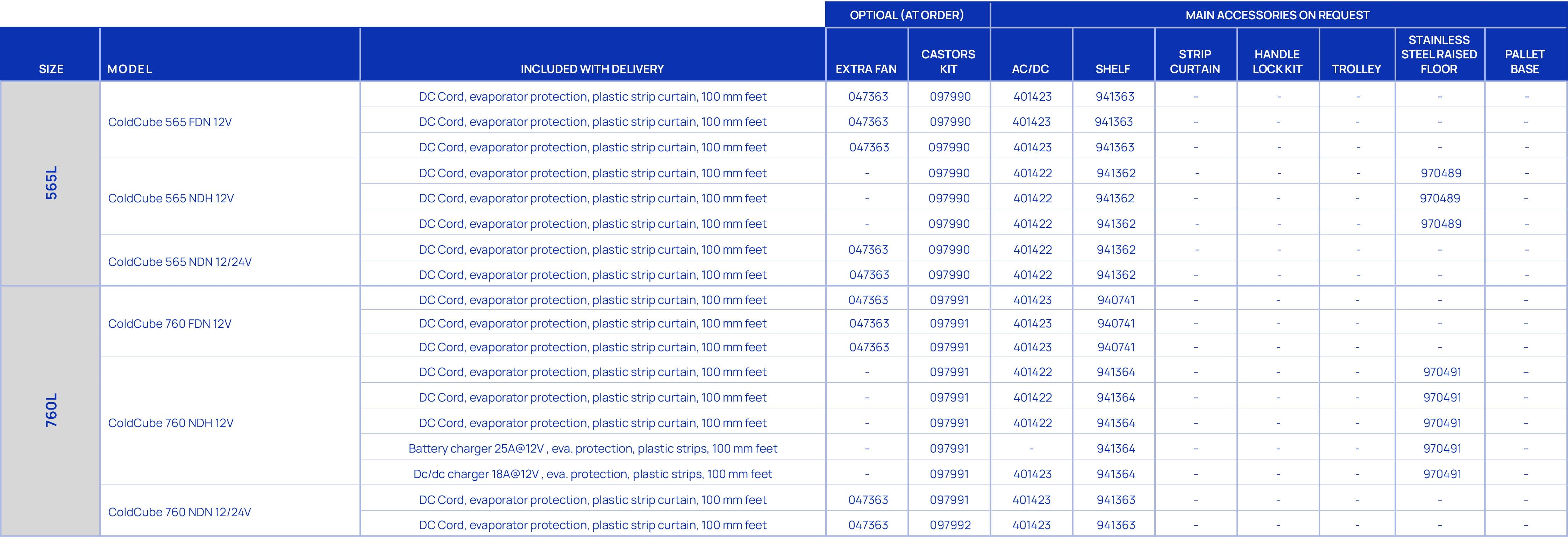

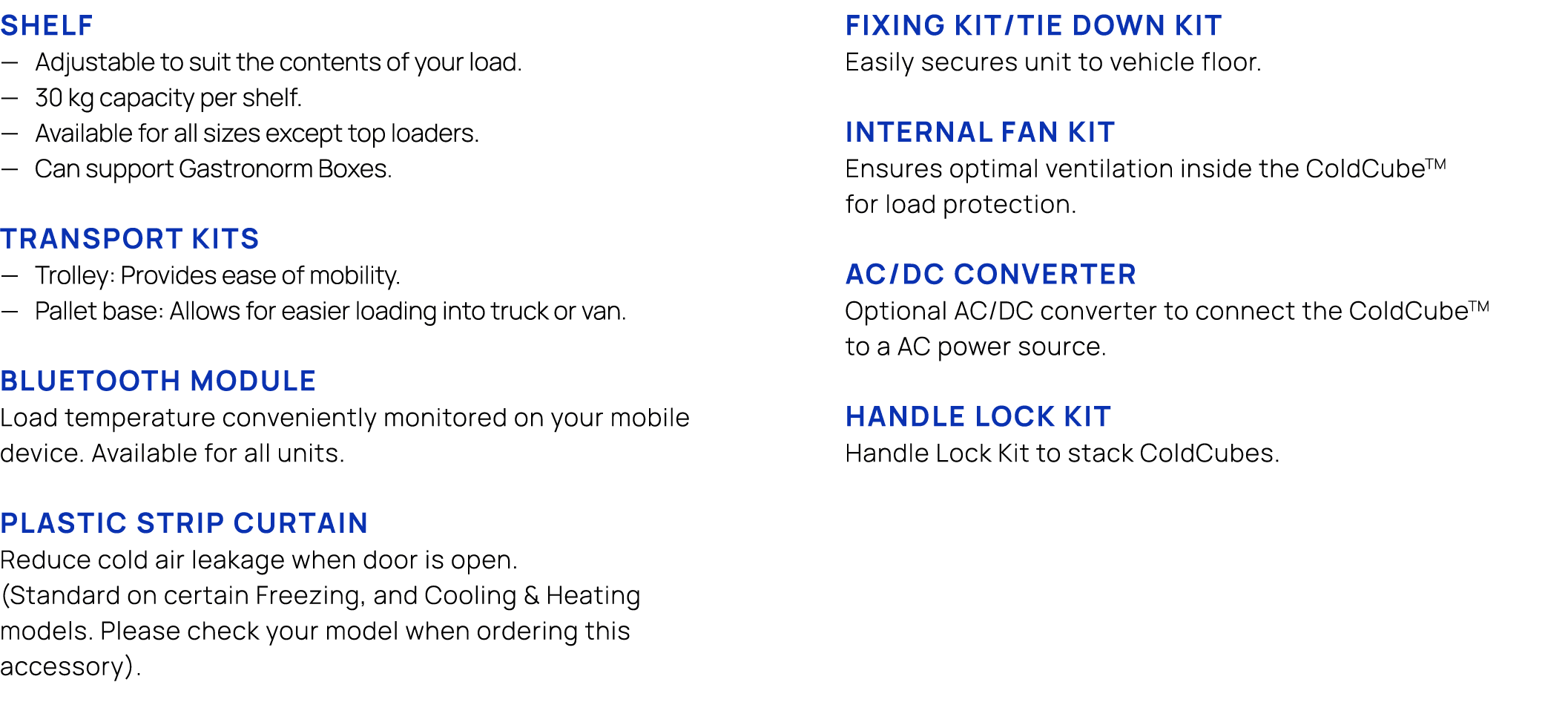

Retrofittable Accessories

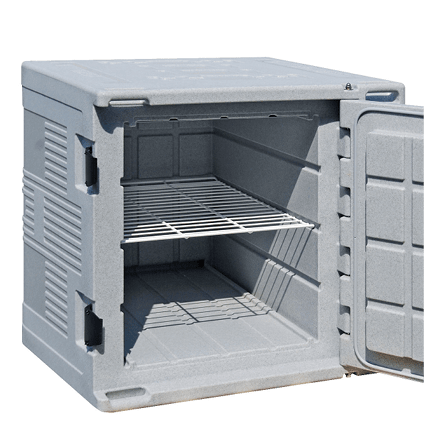

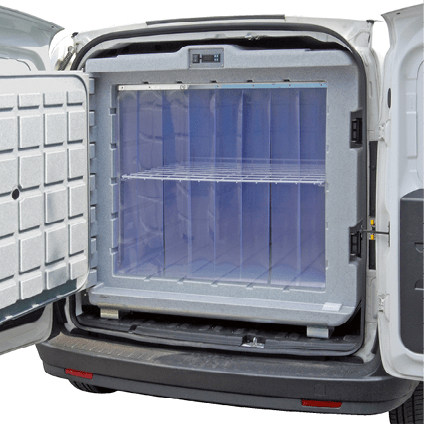

1. Shelf

• — Adjustable to suit the contents of your load.

• —  30 kg capacity per shelf.

• — Available for all sizes except top loaders.

• — Can support Gastronorm Boxes.


2. Transport Kits

• — Trolley: Provides ease of mobility.

• — Pallet base: Allows for easier loading into truck or van.

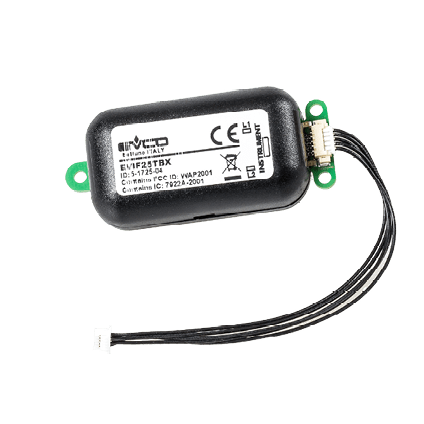

3. Bluetooth Module

Load temperature conveniently monitored on your mobile device. Available for all units.

4. Plastic Strip Curtain

Reduce cold air leakage when door is open.

(Standard on certain Freezing, and Cooling & Heating models. Please check your model when ordering this accessory).

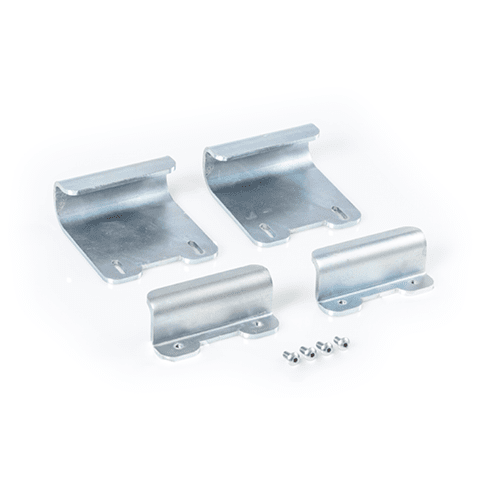

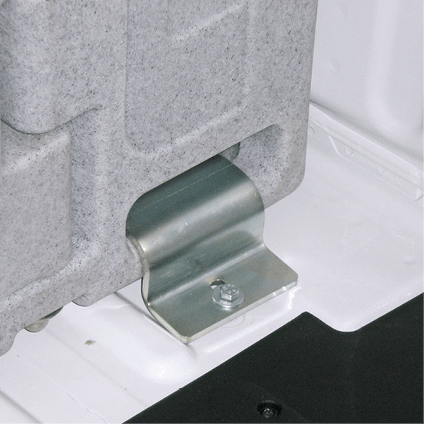

5. Fixing Kit/Tie Down Kit

Easily secures unit to vehicle floor.

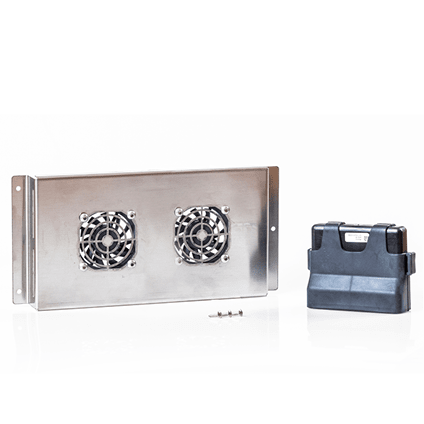

6. Internal fan kit

Ensures optimal ventilation inside the ColdCube™ for load protection.

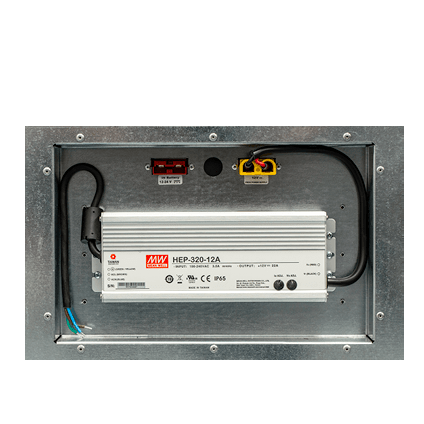

7. AC/DC converter

Optional AC/DC converter to connect the ColdCube™ to a AC power source.

8. Handle Lock kit

Handle Lock Kit to stack ColdCubes.

COLDCUBE™

Flexible cooling solutions

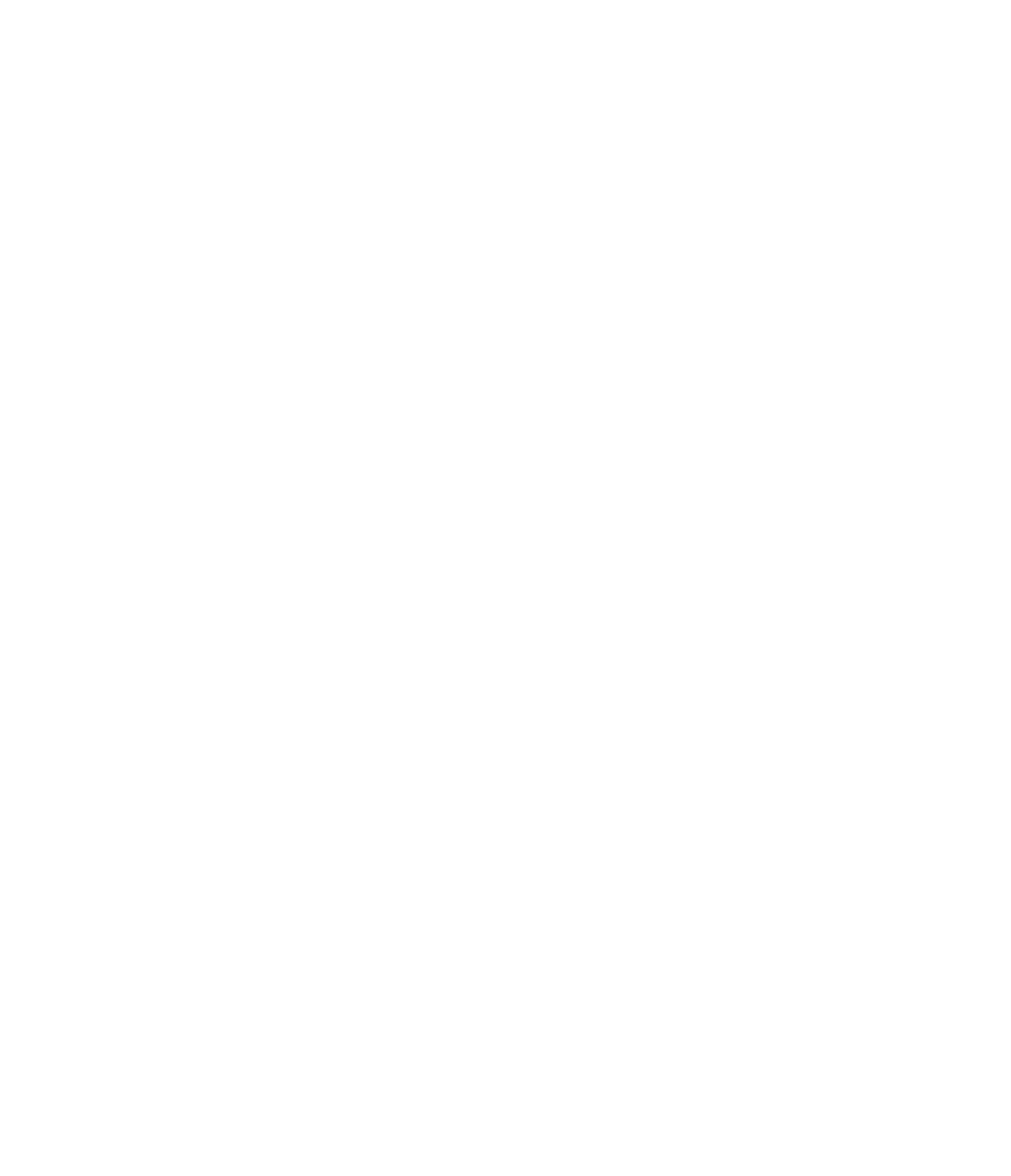

Wide ambient range

Covering 30°C to -21°C with cooling, freezing, and heating capabilities.

Precise Temperature Control

Maximum protection for low operating costs.

Flexible and Autonomous Power

Power your unit with Vehicle DC Power, AC grid power, hybrid or autonomous (internal battery, 12h to 99h autonomy depending on models).

Real-time 24/7 Visibility

Independent datalogger integration and possibility to connect to TracKing and Bluetooth.

Adapted to Customer Needs

15 standard configurations, and custom options.

Thermo King – by Trane Technologies (NYSE: TT), a global climate innovator – is a worldwide leader in sustainable transport climate control solutions. We engineer and provide cutting-edge technology and solutions with sustainability, reliability, and the customer experience in mind. Thermo King has provided transport temperature control solutions for various applications, including trailers, truck bodies, buses, air, shipboard containers, and railway cars since 1938.
